XS2L06PB340

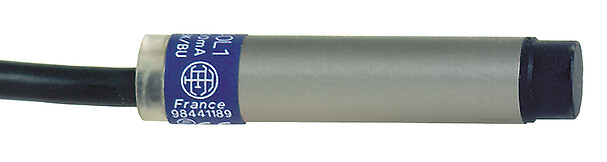

Inductive sensor XS2 Ø6.5 - L33mm - stainless - Sn2.5mm - 12..24VDC - cable 2m
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Device application
Not applicable
Sensor name
XS2
Sensor design
Cylindrical Ø 6.5 mm plain
Size
33 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Enclosure material
Stainless steel 303
Discrete output function
1 NC
Discrete output type
PNP
Electrical connection
Cable
[Us] rated supply voltage
12...24 V DC
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Detector flush mounting acceptance
Non flush mountable
Material
Stainless steel
Output circuit type
DC
Detection face
Frontal
Sensing range
> 0...2.5 mm
Front material
PPS
Wire insulation material
PvR
Cable composition
3 x 0.11 mm²
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 5000 Hz
Voltage drop
<2 V (closed)
Current consumption
0...10 mA no-load
Delay first up
5 MILLISECOND
Delay response
1 MILLISECOND
Marking
CE
Delay recovery
1 MILLISECOND
Product certifications
CSA
UL
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
