XS508B1CAL08M12

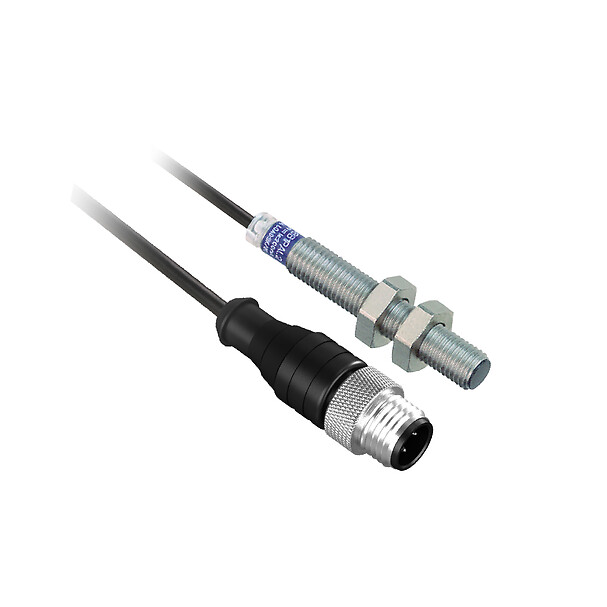

Inductive sensor, XS, M8, stainless steel, Sn 1.5 mm, NO, M12 connector, L61 mm, 12...48 VDC, M12 0.8 m
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor name
XS5
Sensor type
Inductive proximity sensor
Sensor design
Cylindrical M8
Device application
Not applicable
ETIM classification
ETIM 9 - EC002714 - Inductive proximity switch
Body type
Fixed
Material
Stainless steel
Front material
PPS
Enclosure material
Stainless steel 303
[Sn] nominal sensing distance
1.5 mm
Wiring technique
2-wire
Detector flush mounting acceptance
Flush mountable
Delay response
0.2 ms
Thread type
M8 x 1
Product certifications
CCC
CSA
UL
CSA
UL
Marking
CE
Indivisible sale quantity
1
Sensing range
> 0...2.5 mm
Electrical connection
Remote male connector M12, 4 pins
Cable length
0.8 m
Cable composition
2 x 0.11 mm²
Wire insulation material
PVC
Supply voltage limits
10-58 V DC
[Us] rated supply voltage
12...48 V DC
Switching capacity in mA
1.5...100 mA DC with overload and short-circuit protection
Voltage drop
<4 V (closed)
Status LED
Output state: 1 LED (yellow)
Output circuit type
DC
Type of output signal
Discrete
Detection face
Frontal
Discrete output function
1 NO
Switching frequency
<= 4000 Hz
Differential travel
1...15 % of Sr
Delay first up
10 ms
Delay recovery
0.2 ms
Residual current
0.5 mA open state
Threaded length
42 mm
Length
51 mm
Size
51 mm
Product weight
0.05 kg
IP degree of protection
IP67 conforming to IEC 60529
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916013823
Package 1 height
2.1 cm
Package 1 width
10.3 cm
Package 1 length
15.6 cm
Package 1 weight
0.05 kg
Unit type of package 2
S01
Number of units in package 2
10
New Package 2 GTIN 14
13666916013820
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
1.136 kg
Unit type of package 3
S02
Number of units in package 3
22
New Package 3 GTIN 14
23666916013827
Package 3 height
15 cm
Package 3 width
30 cm
Package 3 length
40 cm
Package 3 weight
1.629 kg
Expand all
Technical Drawings

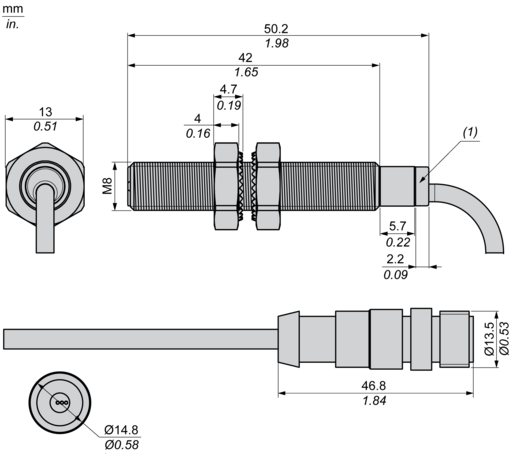

Dimensions
Minimum Mounting Distances
Wiring Schemes
2-Wire Non-polarised
2-Wire Non-polarised
Performance Curves
Standard Steel Target : 8x8x1 mm
