XS518B1PAL2
Inductive proximity sensors XS, inductive sensor XS5 M18, L39mm, brass, Sn5mm, 12...24 VDC, cable 2 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS5
Device application
Not applicable
Sensor design
Cylindrical M18
Size
39 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Flush mountable
Discrete output type
PNP
Material
Metal
Electrical connection
Cable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Output circuit type
DC
Switching capacity in mA
<= 200 mA DC with overload and short-circuit protection
IP degree of protection
IP68 double insulation conforming to IEC 60529, IP69K conforming to DIN 40050
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M18 x 1
Front material
PPS
Sensing range
> 4...8 mm
Differential travel
1...15 % of Sr
Cable composition
3 x 0.34 mm²
Status LED
Output state: 1 LED (yellow)
Wire insulation material
PVC
Switching frequency
<= 2000 Hz
Voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Delay first up
10 MILLISECOND
Delay response
0.15 MILLISECOND
Marking
CE
Delay recovery
0.35 MILLISECOND
Product certifications
CSA
UL
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S03
Number of units in package 2
44
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
8.629 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

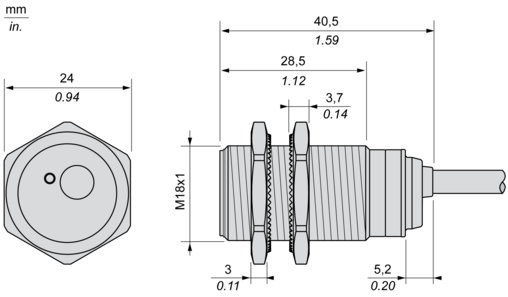

Dimensions
Minimum Mounting Distances
Mounting
Wiring Schemes
Performance Curves
Standard Steel Target : 18x18x1 mm
Expand all
Documents & Downloads
Document name
Date
Size
2025-06-13
25982403
2025-01-01
22731526
Document name
Date
Size
Document name
Date
Size
2025-01-13
8843040
2020-07-01
997783
Document name
Date
Size
7/18/2024
144185
7/18/2024
15475
7/18/2024
15921
7/18/2024
19642
7/18/2024
19672
7/18/2024
31990
7/18/2024
32794
7/18/2024
33147
7/18/2024
34361
7/18/2024
56511
7/18/2024
73185
7/18/2024
751803
7/18/2024
80907
7/18/2024
81012
7/18/2024
82750
Document name
Date
Size
2025-05-19
860360
2025-05-19
754758
Document name
Date
Size
2025-03-18
233887
