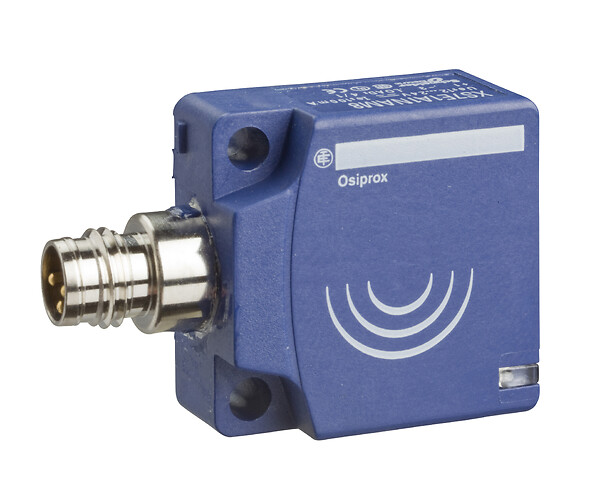

XS7E1A1DAM8
Inductive proximity sensors XS, inductive sensor XS7 26x26x13, PBT, Sn10mm, 12...24 VDC, M8
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Device application
Not applicable
Sensor name
XS7
Sensor design
Flat form 26 x 26 x 13
Size
13 mm
Body type
Fixed
Enclosure material
PBT
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO
Electrical connection
Male connector M8, 3 pins
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
IP degree of protection
IP67 conforming to IEC 60529
Switching capacity in mA
1.5...100 mA DC with overload and short-circuit protection
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Output circuit type
DC
Detection face
Frontal
Front material
PBT
Differential travel
1...15 % of Sr
Sensing range
8...15 mm
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 1000 Hz
Residual current
0.5 mA open state
Voltage drop
<4 V (closed)
Delay first up
5 MILLISECOND
Marking
CE
Delay response
0.3 MILLISECOND
Delay recovery
0.7 MILLISECOND
Product certifications
CSA
C-Tick
Ecolab
UL
C-Tick
Ecolab
UL
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.6 CENTIMETER
Package 1 width
4.2 CENTIMETER
Package 1 weight
34 GRAM
Package 1 length
9.7 CENTIMETER
Unit type of package 2
S02
Number of units in package 2
44
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.884 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Setting-up
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Wiring Schemes
2-Wire NO
2-Wire NO
Expand all
Documents & Downloads
Document name
Date
Size
2025-01-13
8843040
Document name
Date
Size
7/18/2024
183118
7/18/2024
18662
7/18/2024
20440
7/18/2024
20713
7/18/2024
21016
7/18/2024
22616
7/18/2024
22648
7/18/2024
23162
7/18/2024
23860
7/18/2024
24264
7/18/2024
24845
7/18/2024
27745
7/18/2024
32466
7/18/2024
36516
7/18/2024
43411
