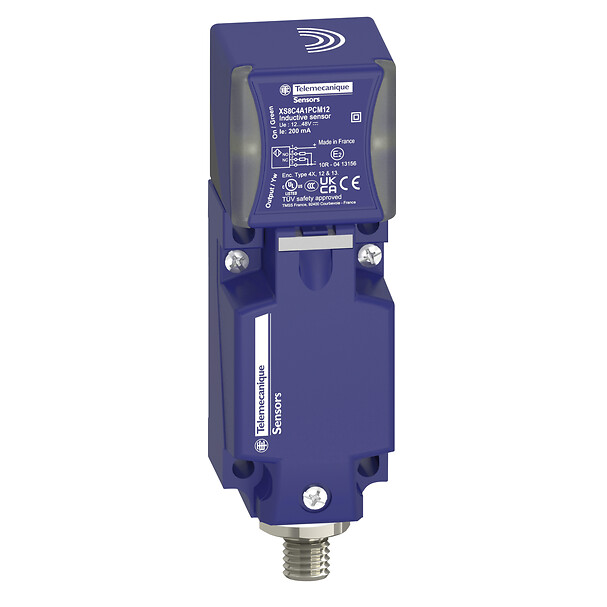

XS8C4A1PCM12
Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn20 mm, 12...48 VDC, M12
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Device application
Mobile equipment
Sensor name
XS8
Sensor design
Form 40 x 40 x 117
Size
117 mm
Body type
Fixed
Enclosure material
PBT
Type of output signal
Discrete
Wiring technique
4-wire
Discrete output function
1 NO + 1 NC
Electrical connection
Male connector M12, 4 pins
Discrete output type
PNP
[Us] rated supply voltage
12...48 V DC with reverse polarity protection
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Output circuit type
DC
Detection face
5 positions turret head
Front material
PBT
Safety level
SIL 2 conforming to IEC 61508, PL = d conforming to ISO 13849-1, SILCL 2 conforming to IEC 62061
Repeat accuracy
<= 3% of Sr
Safety reliability data
MTTFd = 1546 years, PFHd = 7.4E-8 1/h, SFF = 92 %, DC = 75 % with appropriate safety controller
Differential travel
3...15% of Sr
Sensing range
> 15...40 mm
Status LED
Supply on: 1 LED (green), output state: 1 LED (yellow)
Switching frequency
<= 300 Hz
Current consumption
0...15 mA no-load
Voltage drop
<2 V (closed)
Delay first up
7.5 MILLISECOND
Marking
CE
Delay response
1.2 MILLISECOND
Delay recovery
1.8 MILLISECOND
Product certifications
CCC
CSA
E2
TÜV
UL
CSA
E2
TÜV
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
14
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.148 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
