XS8E1A1PAL01M12

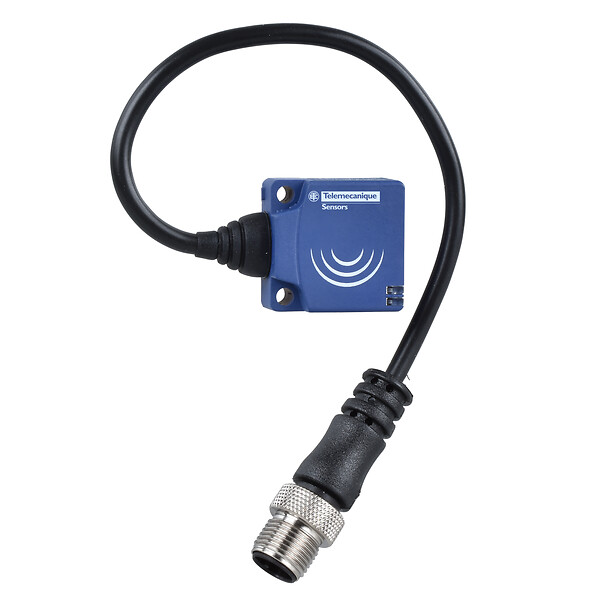

Inductive proximity sensors XS, inductive sensor XS8 26x26x13, PBT, Sn15mm, 12...24 VDC, M12 0.15 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Device application
Not applicable
Sensor name
XS8
Sensor design
Flat form 26 x 26 x 13
Size
13 mm
Body type
Fixed
Enclosure material
PBT
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NO
Electrical connection
Remote male connector M12, 4 pins
Discrete output type
PNP
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
IP degree of protection
IP67 double insulation conforming to IEC 60529
Switching capacity in mA
<= 100 mA DC with overload and short-circuit protection
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Output circuit type
DC
Detection face
Frontal
Front material
PBT
Differential travel
1...15 % of Sr
Wire insulation material
PVC
Sensing range
8...15 mm
Switching frequency
<= 2000 Hz
Residual current
1.5 mA open state
Current consumption
<= 10 mA no-load
Voltage drop
<2 V (closed)
Delay first up
10 MILLISECOND
Marking
CE
Delay response
0.3 MILLISECOND
Delay recovery
0.8 MILLISECOND
Product certifications
CSA
Ecolab
UL
Ecolab
UL
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
44
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.695 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
