XS9C111A2L2
Inductive sensor, XS9, 40x40x15 mm, PBT, Sn 15 mm, cable 2 m, form C flat
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor name
XS9
Sensor type
Inductive proximity sensor
Sensor design
Flat form 40 x 40 x 15
Device application
Not applicable
ETIM classification
ETIM 9 - EC002714 - Inductive proximity switch
Body type
Fixed
Material
Plastic
Front material
PBT
Enclosure material
PBT
[Sn] nominal sensing distance
15 mm
Wiring technique
2-wire
Detector flush mounting acceptance
Flush mountable
Product certifications
CSA
Ecolab
UL
Ecolab
UL
Marking
CE
Range compatibility
TE INDTIVE PROX SSRS XS
Indivisible sale quantity
1
Sensing range
8...15 mm
Repeat accuracy
<= 3% of Sr
Electrical connection
Cable
Cable length
2 m
Cable composition
3 x 0.34 mm²
Wire insulation material
PVC
Supply voltage limits
15-36 V DC
[Us] rated supply voltage
24 V DC
Current consumption
0...4 mA no-load
Status LED
Without
Output circuit type
DC
Type of output signal
Analogue
Output current drift
10 %
Detection face
Frontal
Analogue output range
4...20 mA
Switching frequency
<= 1000 Hz
Linearity error
+/- 2 mA
Height
40 mm
Width
40 mm
Depth
15 mm
Size
15 mm
IP degree of protection
IP68 double insulation conforming to IEC 60529
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916009451
Package 1 height
4.2 cm
Package 1 width
9.6 cm
Package 1 length
13.2 cm
Package 1 weight
0.095 kg
Unit type of package 2
S02
Number of units in package 2
22
New Package 2 GTIN 14
13666916009458
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
3.035 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916009455
Package 3 height
9.5 cm
Package 3 width
13.2 cm
Package 3 length
4.2 cm
Package 3 weight
0.126 kg
Expand all
Technical Drawings
Dimensions
Setting-up
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Wiring Schemes
2-Wire Connection

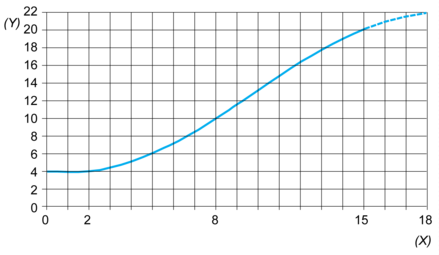

Output Curves
