XS9C2A2A1M12
Inductive sensor, XS9, 40x40x70 mm, PBT, M12 connector, 12...24 VDC
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor name
XS9
Sensor type
Inductive proximity sensor
Sensor design
Form 40 x 40 x 70
Device application
Not applicable
ETIM classification
ETIM 9 - EC002714 - Inductive proximity switch
Body type
Fixed
Material
Plastic
Front material
PBT
Enclosure material
PBT
[Sn] nominal sensing distance
25 mm
Wiring technique
3-wire
Detector flush mounting acceptance
Non flush mountable
Delay response
6 ms
Product certifications
CSA
UL
UL
Marking
CE
Indivisible sale quantity
1
Sensing range
> 15...40 mm
Electrical connection
Male connector M12, 4 pins
Supply voltage limits
15-36 V DC
[Us] rated supply voltage
24 V DC with reverse polarity protection
Current consumption
0...4 mA no-load
Status LED
Output state: 1 LED (yellow)
Output circuit type
DC
Type of output signal
Analogue
Output current drift
5 %
Detection face
5 positions turret head
Analogue output range
0...10 V
Linearity error
<= 3% of Sr
Delay first up
7.5 ms
Delay recovery
6 ms
Height
40 mm
Width
70 mm
Length
40 mm
Size
70 mm
Product weight
0.149 kg
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
ID (Indonesia)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916010167
Package 1 height
4.5 cm
Package 1 width
8.5 cm
Package 1 length
4.1 cm
Package 1 weight
0.149 kg
Unit type of package 2
S01
Number of units in package 2
1
New Package 2 GTIN 14
13666916010164
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
6.671 kg
Unit type of package 3
S02
Number of units in package 3
42
New Package 3 GTIN 14
23666916010161
Package 3 height
30 cm
Package 3 width
15 cm
Package 3 length
40 cm
Package 3 weight
6.8325 kg
Expand all
Technical Drawings
Dimensions
Mounting
Head Positions
Setting-up Precautions
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Wiring Schemes
3-Wire

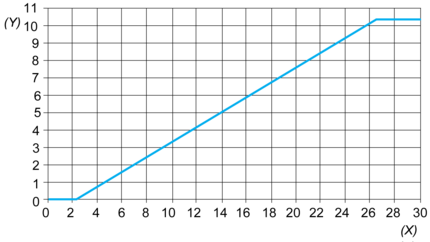

Analogue Outputs
