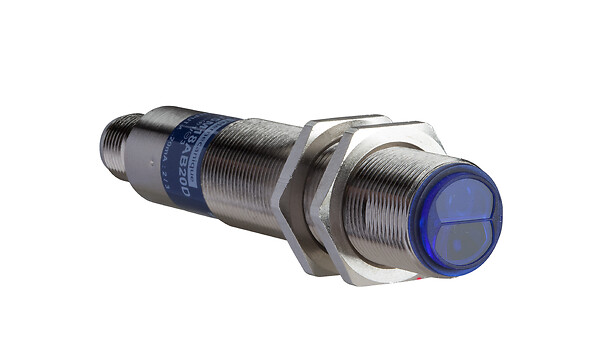

XU5M18AB20D
Photoelectric sensor XU5, diffuse, Sn 0.4 m, M12, analog
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application material handling
Sensor name
XU5
Electronic sensor type
Photo-electric sensor
Sensor design
Cylindrical M18
Product specific application
Not applicable
ETIM classification
ETIM 9 - EC001821 - Diffuse reflective photoelectric sensor
Material
Metal
Lens material
PMMA
Enclosure material
Nickel plated brass
[Sn] nominal sensing distance
0.05-0.4 m diffuse
Maximum sensing distance
0.4 m
Wiring technique
3-wire
Diameter
18 mm
Detection system
Diffuse
Indivisible sale quantity
1
Sensing range
> 0.3...1 m
Electrical connection
1 male connector M12, 4 pins
Supply voltage limits
10-30 V DC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
4...20 mA
Current consumption
<= 30 mA no-load
Emission
Infrared diffuse
Setting-up
Sensitivity adjustment with potentiometer
Analogue output range
-
Type of output signal
Analogue
Add on output
With analogue output
Discrete output type
PNP
Status LED
1 LED (green) for output state
Delay first up
50 ms
Length
95 mm
Product weight
0.075 kg
IP degree of protection
IP67 conforming to IEC 60529
Ambient air temperature for operation
-25…55 °C
Ambient air temperature for operation
-25-55 °C
Ambient air temperature for storage
-40…70 °C
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance
25 gn, amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916037164
Package 1 height
6.4 cm
Package 1 width
9.2 cm
Package 1 length
4.2 cm
Package 1 weight
0.088 kg
Unit type of package 2
S01
Number of units in package 2
22
New Package 2 GTIN 14
13666916037161
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
2.154 kg
Unit type of package 3
S02
Number of units in package 3
44
New Package 3 GTIN 14
23666916037168
Package 3 height
15 cm
Package 3 width
30 cm
Package 3 length
40 cm
Expand all
Technical Drawings
Dimensions
- (1) Potentiometer
- (2) Green LED
Connections and Schemes
Connector Scheme
- 1 : (+)
- 2 : Analogue output
- 3 : (-)
Connections and Schemes
Wiring Schemes
- 1 : (+)
- 2 : Analogue output
- 3 : (-)
Curves

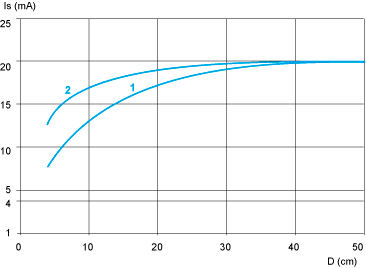

Output Signal (Related to Distance of Object)
- 1 : White 90% object
- 2 : Grey 15% object

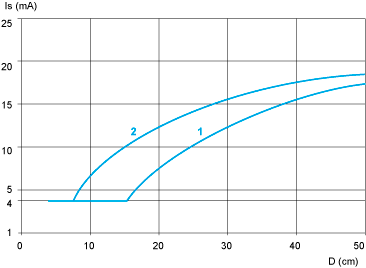

Output Signal (Related to Distance of Object)
- 1 : White 90% object
- 2 : Grey 15% object
- 1 : White 90% object
- 2 : Grey 15% object
