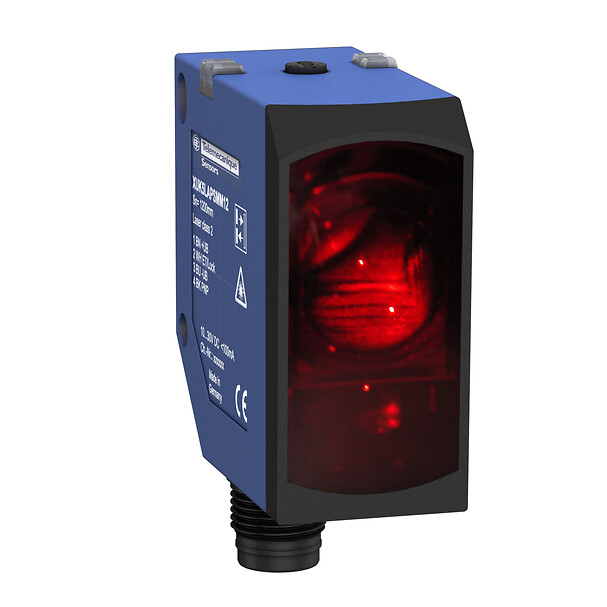

XUK5LAPSMM12
Photoelectric sensors XU, photo electric laser sensor, XUK, diffuse energetic, Sn 1,2 m, 10...30 VDC, M12
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application assembly
Application material handling
Application material handling
Electronic sensor type
Photo-electric sensor
Sensor name
XUK
Sensor design
Compact 50 x 50
Detection system
Diffuse
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
4-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M12, 4 pins
Product specific application
Not applicable
Emission
Red laser diffuse class 1
Enclosure material
ABS/PC
Lens material
PMMA
Cable composition
3 x 0.34 mm²
Output type
Solid state
Wire insulation material
PVC
Status LED
1 LED (yellow) for output state, 1 LED (green/yellow) for supply on/output state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Maximum voltage drop
<1.5 V (closed state)
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
250 Hz
Current consumption
<= 30 mA no-load
Delay first up
300 MILLISECOND
Delay response
0.8 MILLISECOND
Setting-up
Using teach button or remote teaching
Delay recovery
0.8 MILLISECOND
Vibration resistance
7 gn (f = 10-55 Hz) conforming to IEC 60068-2-6
Product certifications
CE
cULus
Ecolab
cULus
Ecolab
Shock resistance
10 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
28
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.644 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

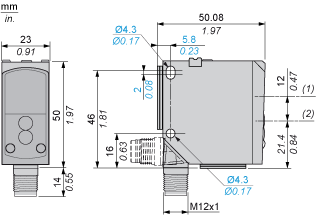

Dimensions
- (1) Receiver optical axis
- (2) Transmitter optical axis
Wiring Schemes Using M12 Connector
- 1 : (+)
- 2 : ET/Lock (1)
- 3 : (-)
- 4 : Output
- BN : Brown
- WH : White
- BU : Blue
- BK : Black
- +UB : External teach
- -UB : Pushbutton locking
- (1) ET/Lock. ET: External Teach, Lock: Pushbutton locking
Curves

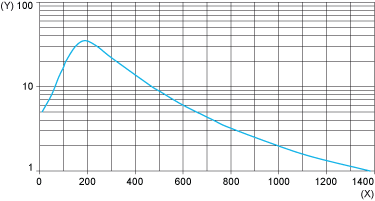

Excess Gain Curve
- (X) Distance (mm)
- (Y) Gain
Curves

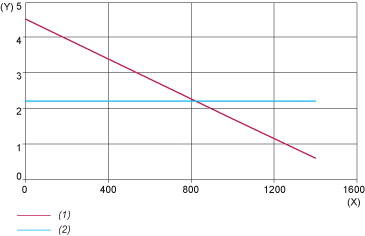

Size of Luminous Point
- (X) Distance (mm)
- (Y) Gain
- (X) Distance (mm)
- (Y) Size (mm)
- (1) Vertical (Y)
- (2) Horizontal (X)
