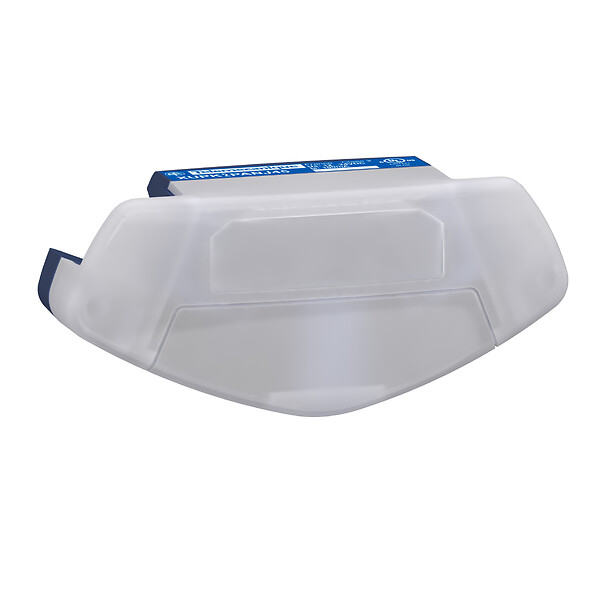

XUPK2PANJ45
Photoelectric sensors XU, Picking Sensor daisychain green/red PNP NO connector RJ45
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application
Electronic sensor type
Photo-electric sensor
Sensor name
XUPK
Detection system
Diffuse
reflex
reflex
Emission
Infrared
Discrete output function
1 NO
Discrete output type
PNP
Electrical connection
2 female connector: RJ45, 2 female connector: RJ45, 2 female connector: RJ45
Material
PC (polycarbonate)
Operating mode
Daisy chain
Product destination
XUPH
Topology
Manual teaching single chain with power supply, manual teaching single chain with power supply, manual teaching single chain with power supply, XUPH: manual teaching daisy chain, XUPH: manual teaching daisy chain, XUPH: manual teaching daisy chain, XUPH: PLC program daisy chain, XUPH: PLC program daisy chain, XUPH: PLC program daisy chain
Device application
Picking system
Hysteresis
15 PERCENTAGE
Output type
Solid state PNP (NO)
[Us] rated supply voltage
12...24 V
Discrete input voltage
12...24 V
Maximum voltage drop
<2 V output, <2 V output
Current consumption
<= 50 mA no-load
Delay response
200 ms
Maximum delay recovery
200 ms
Number of connected devices
14 daisy chain, 14 daisy chain, 64
Status LED
2 LED color: green for parts to be taken, 1 LED color: red for wrong taken
Switching capacity in mA
100 mA
Setting-up
Without sensitivity adjustment
Overvoltage category
II
Fixing mode
By clamp
by screws
by screws
Product certifications
CE
Environmental characteristic
EMC conforming to IEC 60947-5-2
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.2 CENTIMETER
Package 1 width
8.8 CENTIMETER
Package 1 length
4.2 CENTIMETER
Package 1 weight
64 GRAM
Unit type of package 2
S01
Number of units in package 2
24
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.701 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions

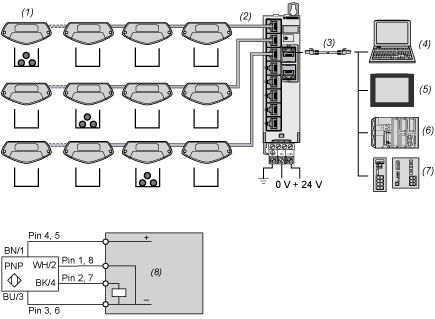

Control by a PC or PLC through the XUPH Ethernet Modbus TCP - IP Communication Box
Detection Curves
Detection in a 10 mm/0.39 in. Tubular Beam
- (1) Detection zone
- Sn : Sensing distance
Mounting
Mounting on a Flat Pannel (Fixation Holes M4)
- (1) Maximum tightening torque: 0,8 Nm / 7.08 Ib-in.
Mounting
Mounting on Tubes (with Plastic Clamps)
- (1) Maximum tightening torque: 0,8 Nm / 7.08 Ib-in.
Expand all
Documents & Downloads
Document name
Date
Size
Document name
Date
Size
2016-07-20
5334198
Document name
Date
Size
2016-01-01
3144546
2016-11-01
2314252
