XUSLBQ6A0920

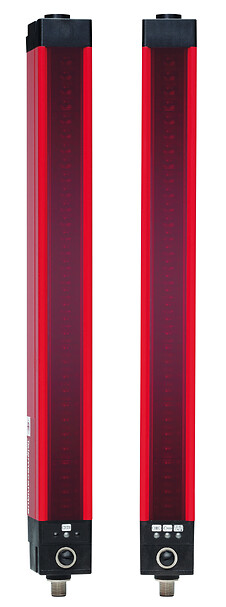

Safety light curtain type 4 - XUSLB - for finger protection - 920 mm
End of commercialisation End of commercialization date : End of service date :
XUSLBQ6A0920 is replaced by the following product:
XUSL4E14F091N
Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 910 mm, R=14 mm
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
Product or component type
Safety light curtain type 4
Series name
Basic
Device short name
XUSLB
Product specific application
For finger protection
Output type
1 auxiliary output solid-state PNP, 2 safety outputs OSSD solid-state PNP (NO) (short-circuit protection)
Detection system
Transmitter-receiver system
Response time
32 ms
Kit composition
1 arc suppressor set(s), 1 receiver(s), 1 test rod(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM, 2 sets of 2 brackets with fixings
Light source
GaAIAs LED, 880 nm
[Us] rated supply voltage
24 V DC +/- 20 %
Current consumption
450 mA no-load receiver, 1.8 A with maximum load receiver, 285 mA transmitter
Output voltage
24 V
Output circuit type
DC
Electrical connection
1 female connector M12 5 pins transmitter, 1 female connector M12 8 pins receiver
Switching capacity in mA
50 mA
Local signalling
1 LED transmitter power supply, 4 LEDs receiver stop, run, interlock, ECS/B Blanking or FB (Floating Blanking)
Marking
CE
Material
Aluminium: casing, 20 % fibre glass impregnated nylon: end caps
Function available
Alignment aid by display of each light beam broken accessible by cabling alone, auto/manual accessible via programming and diagnostic module, automatic start accessible by cabling alone, auxiliary output (PNP, status signalling) accessible by cabling alone, display of operating modes and faults by LED and/or PDM accessible via programming and diagnostic module, LED display of operating modes and faults accessible by cabling alone, light beam coding (A or B) accessible via programming and diagnostic module, monitoring of external switching devices (EDM: External Device Monitoring) accessible via programming and diagnostic module, programming+downloading of conf settings, via programming+diagnostic module(PDM) accessible via programming and diagnostic module, sensing distance (short, long) accessible via programming and diagnostic module, test (MTS: Monitoring Test Signal) accessible by cabling alone
Fixing mode
End brackets
Standards
ANSI B11:19-1990
ANSI/RIA R15.06
EMC 2004/108/EC
EN/IEC 61496-1
EN/IEC 61496-1-2 for type 4 ESPE
EN/IEC 61496-2
machinery directive 2006/42/EC
OSHA 1910-212
OSHA 1910-217C
work equipment directive 2009/104/EC
ANSI/RIA R15.06
EMC 2004/108/EC
EN/IEC 61496-1
EN/IEC 61496-1-2 for type 4 ESPE
EN/IEC 61496-2
machinery directive 2006/42/EC
OSHA 1910-212
OSHA 1910-217C
work equipment directive 2009/104/EC
Product certifications
CSA
TÜV
UL
TÜV
UL
Safety level
Can reach SIL 3 correctly wired conforming to IEC 61508, can reach category 4 correctly wired conforming to EN/ISO 13849-1, can reach PL = e correctly wired conforming to EN/ISO 13849-1, type 4 conforming to IEC 61496-1-2
IP degree of protection
IP65
Safety reliability data
PFH = 4.9E-8 1/h conforming to IEC 61508 verified in worst case conf: 256 beams, 2 segments, mute 20 year(s)
Shock resistance
10 gn for 16 ms conforming to IEC 61496-1
Vibration resistance
0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
Unit type of package 1
PCE
Number of units in package 1
1
