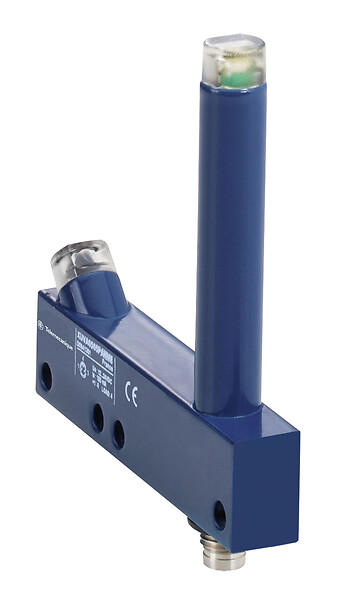

XUVA0808PANM8
Photoelectric sensors XU, XUV, fork, 80 mm, 12...24 VDC, M8
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose
Electronic sensor type
Photo-electric sensor
Sensor name
XUVA
Sensor design
Fork L
Detection system
Thru beam
Emission
Red LED, modulated
Material
Metal/plastic
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO
Electrical connection
1 male connector M8, 3 pins
Product specific application
Detection on small conveyor
Enclosure material
Painted aluminium and polyamide/glass
Type of output signal
Discrete
Output type
Solid state
Status LED
Output state: 1 LED (yellow)
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
100 mA (overload and short-circuit protection)
Voltage drop
<1.5 V (closed state)
Current consumption
< 20 mA no-load
Vibration resistance
7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65, IP67
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
0.17 CENTIMETER
Package 2 width
1.3 CENTIMETER
Package 2 length
1.6 CENTIMETER
Package 2 weight
0.1 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

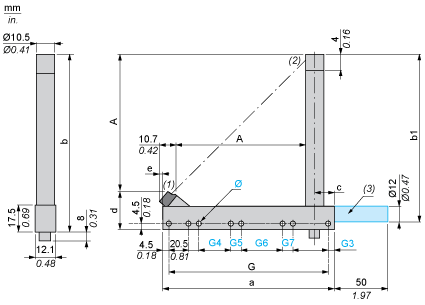

Dimensions
- (1) Transmission LED
- (2) Yellow LED: output signal
- (3) Optional fixing rod available on request. Please consult our Customer Care Centre
Wiring Schemes
M8 Connector
- 1 : BN: Brown
- 3 : BU: Blue
- 4 : BK: Black
Wiring Schemes
PNP Output
- 1 : BN: Brown
- 3 : BU: Blue
- 4 : BK: Black
