XUVR1218PANM8

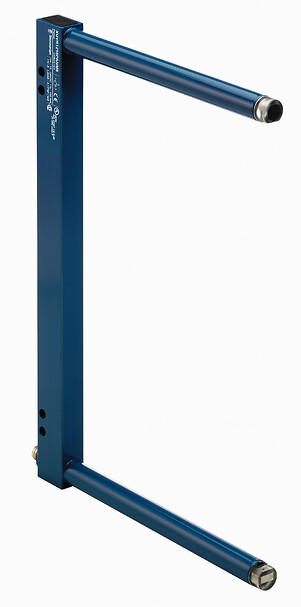

Photoelectric fork sensor XUV, opening 180x120 mm, 12...24 VDC, PNP, NO, M8, optimum
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose
Sensor name
XUVR
Electronic sensor type
Photo-electric sensor
Sensor design
Fork
Product specific application
Detection on small conveyor
ETIM classification
ETIM 9 - EC002720 - Fork light barrier
Material
Metal/plastic
Enclosure material
Painted aluminium and polyamide/glass
[Sn] nominal sensing distance
180-180 mm
Wiring technique
3-wire
Detection system
Thru beam
Passage width
180 mm
Passage depth
120 mm
Indivisible sale quantity
1
Electrical connection
1 male connector M8, 3 pins
Supply voltage limits
10-30 V DC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
100 mA (overload and short-circuit protection)
Voltage drop
<1.5 V (closed state)
Current consumption
< 20 mA no-load
Emission
Red LED, modulated
Status LED
Output state: 1 LED (yellow)
Output type
Solid state
Type of output signal
Discrete
Discrete output type
PNP
Discrete output function
1 NO
Product weight
0.19 kg
IP degree of protection
IP65, IP67
Ambient air temperature for storage
-40…80 °C
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance
7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Immunity to ambient light
10000 lux natural light, 5000 lux incandescent bulb
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916032121
Package 1 height
2 cm
Package 1 width
15 cm
Package 1 length
30.6 cm
Package 1 weight
0.174 kg
Unit type of package 2
S02
Number of units in package 2
15
New Package 2 GTIN 14
13666916032128
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
9.87 kg
Unit type of package 3
S04
Number of units in package 3
55
New Package 3 GTIN 14
23666916032125
Package 3 height
30 cm
Package 3 width
40 cm
Package 3 length
60 cm
Package 3 weight
10.492 kg
Expand all
Technical Drawings
Dimensions
- (1) Transmission LED
- (2) Yellow LED: output signal
Wiring Schemes
M8 Connector
- 1 : BN: Brown
- 3 : BU: Blue
- 4 : BK: Black
Wiring Schemes
PNP Output
- 1 : BN: Brown
- 3 : BU: Blue
- 4 : BK: Black
