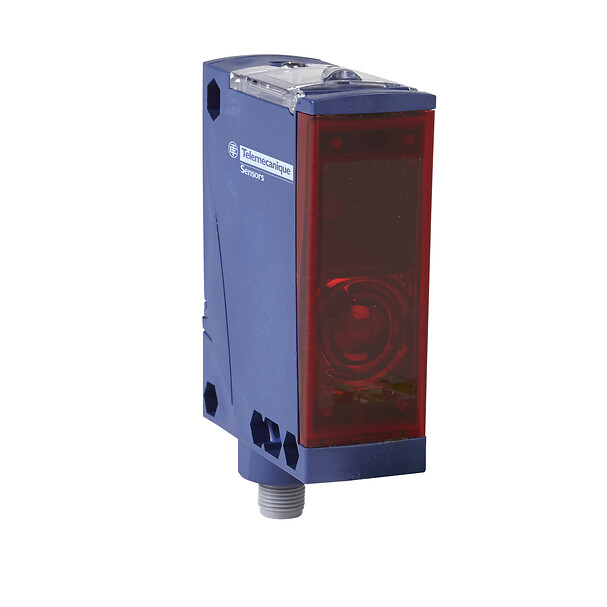

XUX0AKSAM12
Photoelectric sensors XU, XUX, multi, Sn 0...40 m, 12...24 VDC, M12
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUX
Series name
General purpose multimode
Product specific application
Not applicable
Enclosure material
PBT
Electronic sensor type
Photo-electric sensor
Sensor design
Compact 92 x 71
Electrical connection
1 male connector M12, 4 pins
Material
Plastic
Wiring technique
3-wire
Detection system
Multimode
Emission
Infrared diffuse, infrared diffuse with background suppression, infrared thru beam, red polarised reflex
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Switching frequency
250 Hz
Delay response
2 MILLISECOND
Setting-up
Self teaching
Current consumption
<= 35 mA no-load
Output type
Solid state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PMMA
Add on output
With alarm output, <= 100 mA with overload and short-circuit protection
Status LED
1 LED (green) for supply, 1 LED (red) for instability, 1 LED (yellow) for output state
Sensing range
> 0...40 m
Maximum voltage drop
<1.5 V (closed state)
Delay first up
200 MILLISECOND
Delay recovery
2 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 double insulation conforming to IEC 60529, IP67 double insulation conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.2 CENTIMETER
Package 1 width
9.5 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
0.199 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.687 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
13 CENTIMETER
Package 3 width
4.2 CENTIMETER
Package 3 length
9.5 CENTIMETER
Package 3 weight
0.199 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

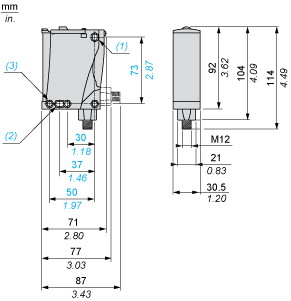

Dimensions
- (1) Elongated hole Ø 5.5 x 7
- (2) Elongated hole Ø 5.5 x 9
- (3) Ø 5.5 hole
Mounting and Clearance
Possible Orientation of Elbowed Connector (Rear View)
Wiring Schemes
M12 Connector
Wiring Schemes
Detection Curves
With Thru-beam Accessory (Thru-beam)
Detection Curves
Without Accessory (Diffuse)
- 1 : White 90%
- 2 : Grey 18%
Detection Curves
Without Accessory (Diffuse with background suppression)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
Detection Curves
With reflector (Polarised reflex)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
Detection Curves
Variation of Usable Sensing Distance Su (Without accessory, with adjustable background suppression)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
Variation of Usable Sensing Distance Su (Without accessory, with adjustable background suppression)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
