XUX9ARCNT16

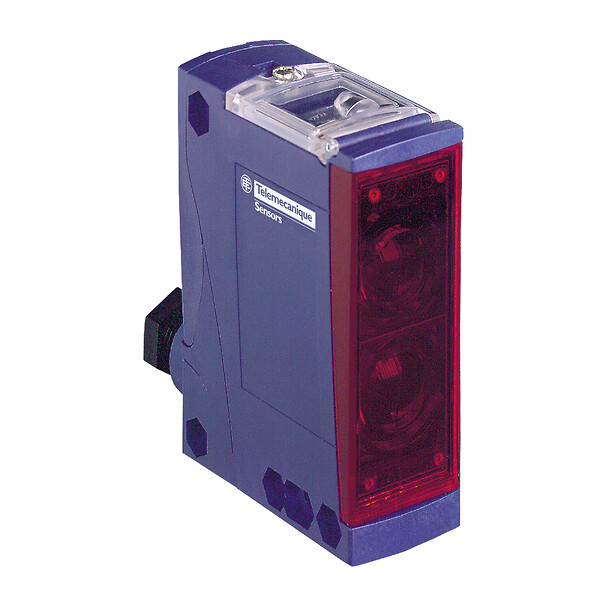

Photoelectric sensors XU, XUX, polarised, Sn 11 m, 24...240VAC/DC, terminals
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUX
Sensor design
Compact 92 x 71
Detection system
Polarised reflex
Material
Plastic
Type of output signal
Discrete
Supply circuit type
AC/DC
Wiring technique
5-wire
[Sn] nominal sensing distance
11-11 m polarised reflex need reflector XUZC50
Discrete output function
1 C/O
Electrical connection
Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor
Product specific application
Not applicable
Emission
Red polarised reflex
Enclosure material
PBT
Lens material
PMMA
Output type
Relay
Cable entry
1 entry for M16 x 1.5 cable gland, cable outer diameter: 7-10 mm
Status LED
1 LED (yellow) for output state, 1 LED (red) for instability, 1 LED (green) for supply
[Us] rated supply voltage
24...240 V AC/DC
Switching capacity in mA
3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V), 0.5 A (cos φ = 0.4 for 0.5 million cycles at 1 operating cycle per second at 250 V)
Switching frequency
20 Hz
Maximum voltage drop
<1.5 V (closed state)
Current consumption
<= 35 mA no-load
Maximum power consumption in W
-
Delay first up
60 MILLISECOND
Delay response
25 MILLISECOND
Delay recovery
25 MILLISECOND
Setting-up
Sensitivity adjustment
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 double insulation conforming to IEC 60529, IP65 double insulation conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.438 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
