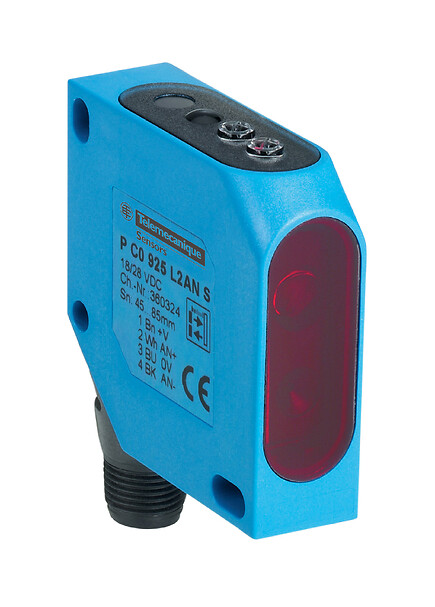

Photoelectric sensor XUY, diffuse, analog laser, Sn 85 mm, 12...24 VDC, M12
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application material handling
Sensor name
XUY
Electronic sensor type
Photo-electric sensor
Sensor design
Compact 50 x 50
Product specific application
Measuring thickness of mechanical parts
position control of robot arm
position control of robot arm
ETIM classification
ETIM 9 - EC001821 - Diffuse reflective photoelectric sensor
Material
Plastic
Enclosure material
ABS, anti-shock
[Sn] nominal sensing distance
45-85 mm
Wiring technique
4-wire
Detection system
Diffuse
Indivisible sale quantity
1
Sensing range
> 0.3...1 m
Electrical connection
1 male connector M12, 4 pins
Supply voltage limits
18-28 V DC
[Us] rated supply voltage
24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
3 mA (overload and short-circuit protection)
Voltage drop
<2.4 V (closed state)
Current consumption
35 mA no-load
Emission
Red laser, pulsed, wavelength: 650 nm - class 1 conforming to IEC 825-1
Setting-up
Parametering by buttons
Pulse frequency
6 kHz
Status LED
Supply on: 1 LED (green), dirty: 1 LED (red)
Analogue output range
0...10 V
Spot diameter
0.8 mm at 65 mm
Spot dimension
Ø 0.8 mm at 65 mm
Delay response
30 ms for output circuit
Product weight
0.057 kg
IP degree of protection
IP67 conforming to IEC 60529
Ambient air temperature for storage
-20…60 °C
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Immunity to ambient light
5000 lux natural light
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
DE (Germany)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916029022
Package 1 height
2.8 cm
Package 1 width
6 cm
Package 1 length
9.1 cm
Package 1 weight
0.046 kg
Unit type of package 2
S01
Number of units in package 2
10
New Package 2 GTIN 14
13666916029029
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
0.685 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916029026
Package 3 height
9.1 cm
Package 3 width
2.8 cm
Package 3 length
6 cm
Package 3 weight
0.046 kg
Expand all
Technical Drawings

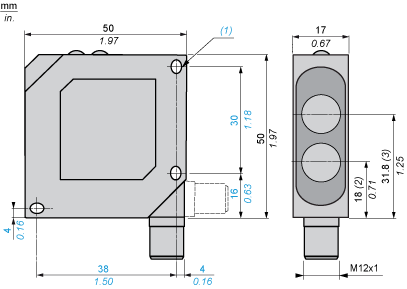

Dimensions
- (1) 2 elongated holes Ø 4.3 x 4
- (2) Transmitter optical axis
- (3) Receiver optical axis
Wiring Schemes
- 1 : Brown
- 2 : White
- 3 : Blue
- 4 : Black
- 1 : Brown
- 2 : White
- 3 : Blue
- 4 : Black
- (+) BN : Brown
- WH : White
- (-) BU : Blue
- BK : Black
- (1) Shielding

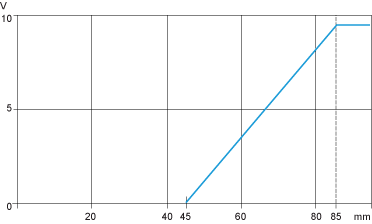

Adjustment Curves
