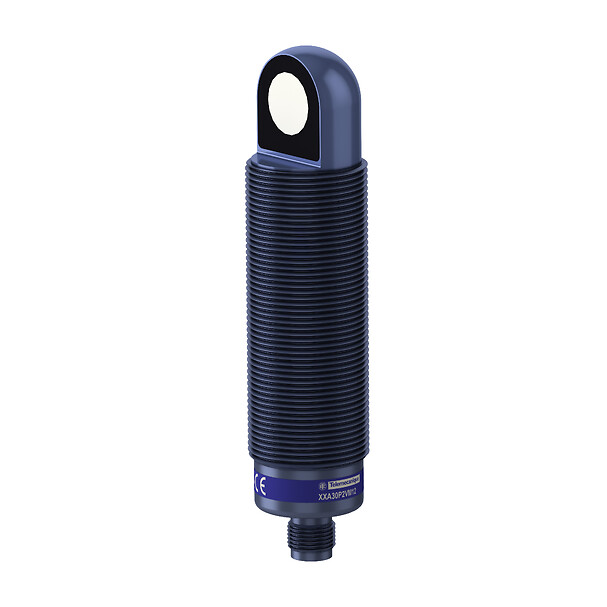

XXA30P2VM12
Ultrasonic sensors XX, ultrasonic sensor, plastic, cylindrical M30, angled, 2 m, 0...10 V
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Ultrasonic sensors XX
Sensor type
Ultrasonic sensor
Series name
General purpose
Sensor name
XXA
Sensor design
Cylindrical M30
Detection system
Diffuse (with 90° head)
Material
Plastic
Type of output signal
Analogue
Wiring technique
5-wire
Analogue output function
0...10 V
[Us] rated supply voltage
24 V DC with reverse polarity protection
Electrical connection
Male connector M12 5 pins
Enclosure material
PBT
Front material
Epoxy
resin
rubber
resin
rubber
Function available
Software configurable
with synchronisation mode
with synchronisation mode
Minimum size of detected object
Cylinder diameter 1 mm at 1.4 m
Delay first up
250 MILLISECOND
Current consumption
65 mA
Status LED
Output state: 1 LED (yellow), echo state: 1 LED (green)
Maximum switching capacity
>= 1 kOhm overload and short-circuit protection
Setting-up
Configurator software
teach mode
teach mode
Delay recovery
200 MILLISECOND
IP degree of protection
IP65 conforming to IEC 60529, IP67
Marking
CE
Standards
CSA C22.2 No 14
IEC 60947-5-2
UL 508
IEC 60947-5-2
UL 508
Product certifications
cULus
E2
Ecolab
RCM
E2
Ecolab
RCM
Vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.84 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

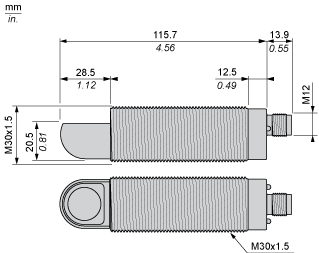

Dimensions
Connections

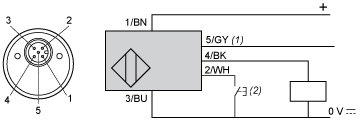

Connector Wiring
- (1) : Synchronization
- (2) : External setting pushbutton or XXZPB100 remote teach pushbutton.
Connections
Wiring Scheme. Analog Output
- (1) : Synchronization
- (2) : External setting pushbutton or XXZPB100 remote teach pushbutton.
- (1) : Synchronization
- 0-10 V: 1 kΩ…∞
Connections

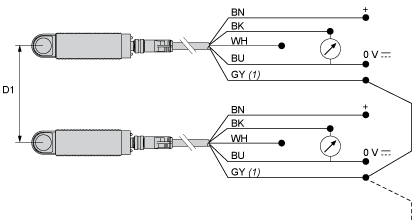

Wiring for the Synchronization Function (Side by Side Application)
- (1) : Synchronization
- (2) : External setting pushbutton or XXZPB100 remote teach pushbutton.
- (1) : Synchronization
- 0-10 V: 1 kΩ…∞
- (1) : Synchronization
- D1 : 1/8 Sn
- BN : Brown
- WH : White
- BU : Blue
- BK : Black
- GY : Grey
Performance Curves

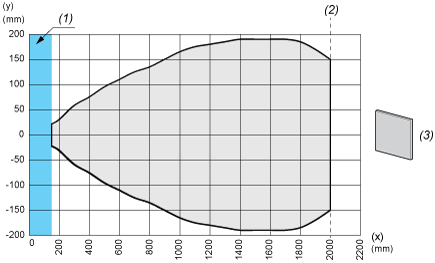

Detection Curve with 100 x 100 mm / 3.94 x 3.94 inches Square Target
- (X) : Target distance
- (Y) : Detection limit
- (1) : Blind zone: 155 mm / 6.10 inches
- (2) : Sn max.
- (3) : 100 x 100 mm / 3.94 x 3.94 inches stainless steel plate
Performance Curves

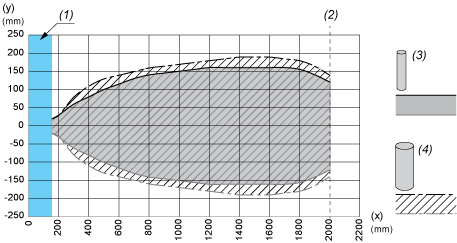

Detection Curve with Round Bar
- (X) : Target distance
- (Y) : Detection limit
- (1) : Blind zone: 155 mm / 6.10 inches
- (2) : Sn max.
- (3) : 100 x 100 mm / 3.94 x 3.94 inches stainless steel plate
- (X) : Target distance
- (Y) : Detection limit
- (1) : Blind zone: 155 mm / 6.10 inches
- (2) : Sn max.
- (3) : Ø 10 mm / 0.394 inches stainless steel cylinder
- (4) : Ø 25 mm / 0.984 inches stainless steel cylinder
Expand all
Documents & Downloads
Document name
Date
Size
2024-02-07
18921683
Document name
Date
Size
2025-02-28
281327
2025-05-19
285753
Document name
Date
Size
7/18/2024
1132950
7/18/2024
118834
7/18/2024
1366905
7/18/2024
1376339
7/18/2024
1387641
7/18/2024
1397190
7/18/2024
1474422
7/18/2024
157513
7/18/2024
2363675
7/18/2024
286390
7/18/2024
372532
7/18/2024
392445
7/18/2024
463363
7/18/2024
469540
7/18/2024
472577
7/18/2024
487530
Document name
Date
Size
Document name
Date
Size
2024-06-27
191144
Expand all
Related products & accessories
XXZB130
Mounting accessory for OsiSense XX M30
XXZPB100
Teach mode pushbutton, selection of detection window, for ultrasonic sensor

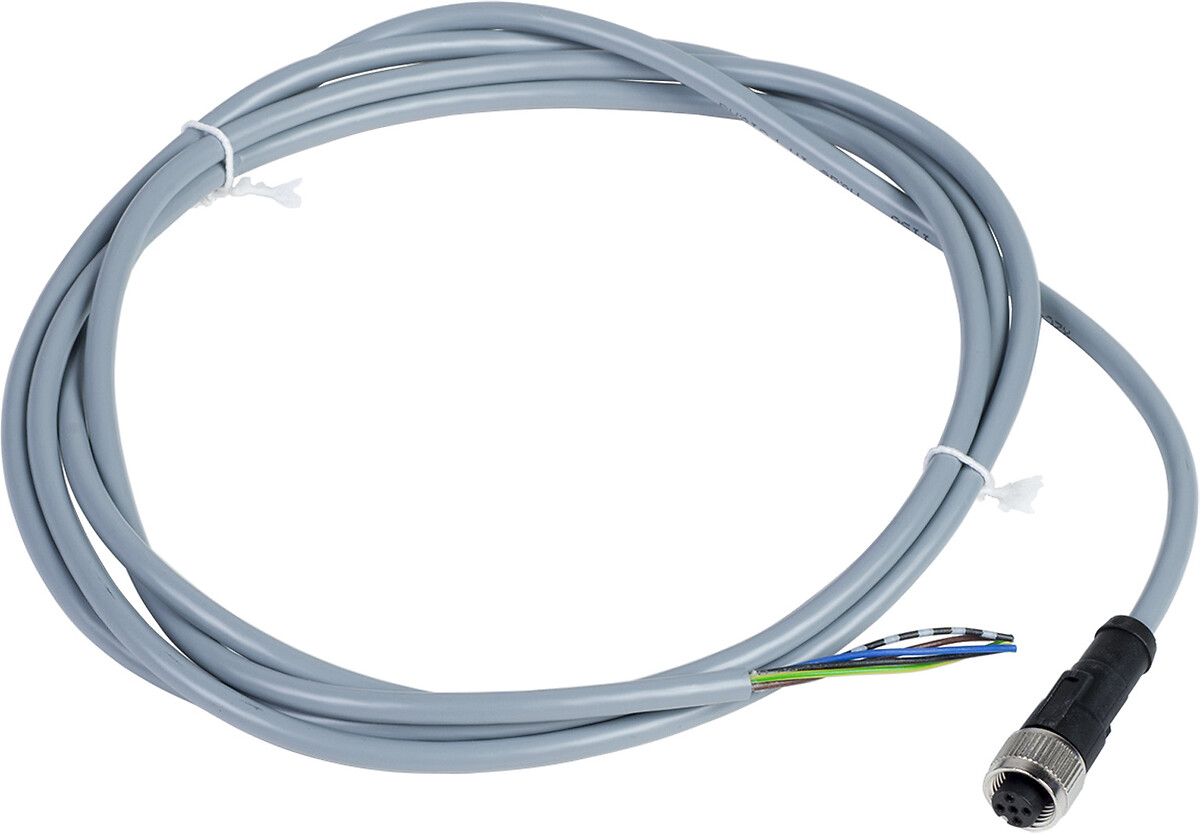

XZCPV1164L2
