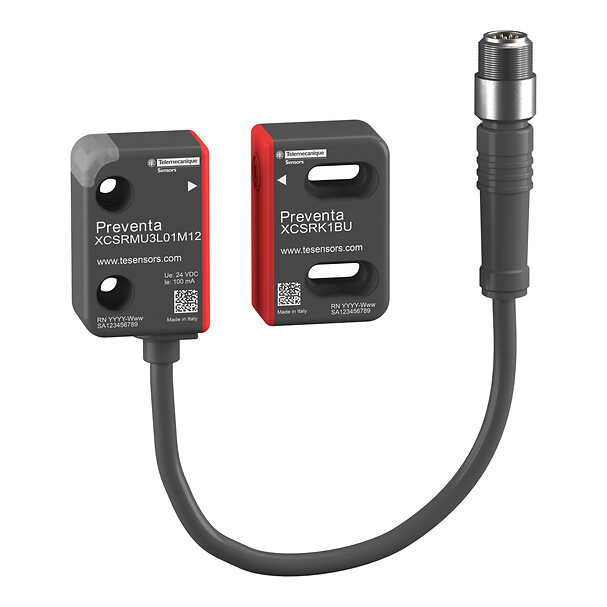

XCSRMU3L01M12
Miniature Safety RFID switch, unlimited pairing enabled, Daisy-chain + EDM, 100mm cable + 8-pin M12 connector
Commercialised
Expandir todo
Ficha de datos
Range of product
Telemecanique Safety switches XCS
Product or component type
Preventa RFID safety switch
Component name
XCSRM
Design
Miniature
Size
Switch: 42 x 28.5 x 18 mm
actuator: 42 x 28.5 x 18 mm
Material
Plastic
Electrical connection
Pigtail connector
Connector type
M12 male
Type of output stage
Solid-state, PNP
Safety outputs
2 NO
Local signalling
Green, yellow and red 1 multi-colour LED
[Ue] rated operational voltage
24 V DC (- 20...20 %) SELV or PELV conforming to IEC 60204-1
Protection type
Short-circuit protection
Switching capacity in mA
300 mA
Switching frequency
<= 1 Hz
Response time
<55 ms +12 ms per switch in daisy-chain (Risk time according to IEC 60947-5-3)
Tightening torque
0.8...1.2 N.m
Standards
IEC 60947-5-2
IEC 60947-5-3
ISO 14119
IEC 60947-5-3
ISO 14119
Product certifications
Ecolab
TÜV
TÜV
Marking
CE
TÜV
UKCA
TÜV
UKCA
Safety level
SIL 3 conforming to IEC 61508
SILCL 3 conforming to IEC 62061
PL = e conforming to ISO 13849-1
category 4 conforming to ISO 13849-1
Safety reliability data
PFHd = 2.62E-9 1/h conforming to IEC 62061
PFHd = 2.62E-9 1/h conforming to ISO 13849-1
Vibration resistance
+/- 1 mm (f= 10-55Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11ms conforming to IEC 60068-2-27
Electrical shock protection class
Class III conforming to IEC 61140
IP degree of protection
IP65 conforming to IEC 60529
IP67 conforming to IEC 60529
Package 1 height
12 CENTIMETER
Package 1 width
2 CENTIMETER
Package 1 length
15 CENTIMETER
Package 1 weight
79 KILOGRAM
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.248 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
