XMLE001U1D43

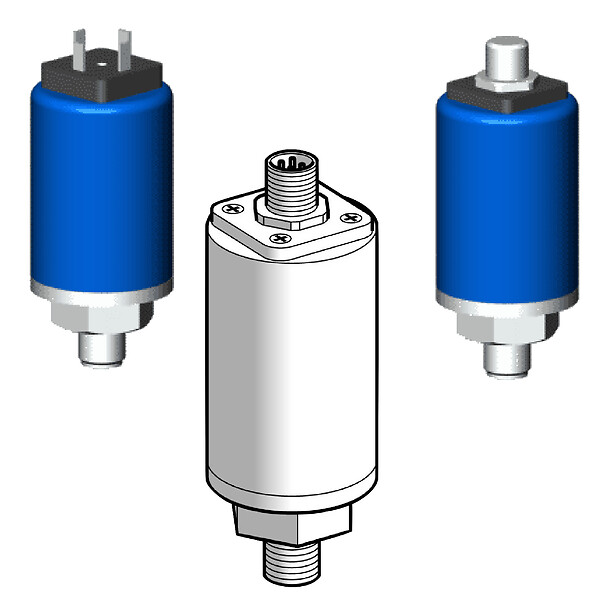

Vacu-pressure sensor 1 bar - 1/4'' NPT - 24 V - NC

End of commercialisation Fecha de fin de comercialización : Fecha de fin del servicio :

Descargar hoja de datos en pdf Descargar archivo CAD 3D Encontrar un distribuidor

Expandir todo

Ficha de datos

Range of product
Telemecanique Pressure sensors XM
Product or component type
Electronic pressure sensors
Pressure sensor type
Electronic vacuum-pressure sensor
Pressure sensor name
XMLE
Fluid connection type
1/4" - 18 NPT (male)
Pressure switch type of operation
Regulation between 2 thresholds
Discrete output type
Solid state PNP, 1 NC
Electrical connection
Male connector M12
Type of output signal
Discrete
[Us] rated supply voltage
24 V DC, voltage limits: 11-33 V
Materials in contact with fluid
Stainless steel type AISI 303
Scale type
Adjustable differential
Controlled fluid
Air (-15-80 °C), corrosive fluid (-15-80 °C), hydraulic oil (-15-80 °C), fresh water (0-80 °C)
Local display
Without
Type of installation
Control circuit
Enclosure material
Anodised aluminium
Protection type
Overload protection
reverse polarity
short-circuit
Drift of the sensitivity
+/- 0.015 % of measuring range/°C
Drift of the zero point
+/- 0.03 % of measuring range/°C
Measurement accuracy
+/- 0.3 % of the measuring range
Operating position
Any position
Vibration resistance
35 gn (f = 60-2000 Hz), 5 gn (f = 25-200 Hz)
Shock resistance
50 gn
Standards
CE
EN 50081
EN 50082
Product certifications
CSA
UL
Protective treatment
TC
IP degree of protection
IP65
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov

Expandir todo

Dibujos tecnicos

Dimensions

epds
  • Ø : 1/2 NPT

Wiring Diagram

epds
  • (BU) Blue
  • (BN) Brown
  • (WH) White
  • (YG) Yellow Green

Operating Curves

epds
  • 1 : Maximum differential
  • 2 : Minimum differential
  • (y) Rising pressure
  • (x) Falling pressure
