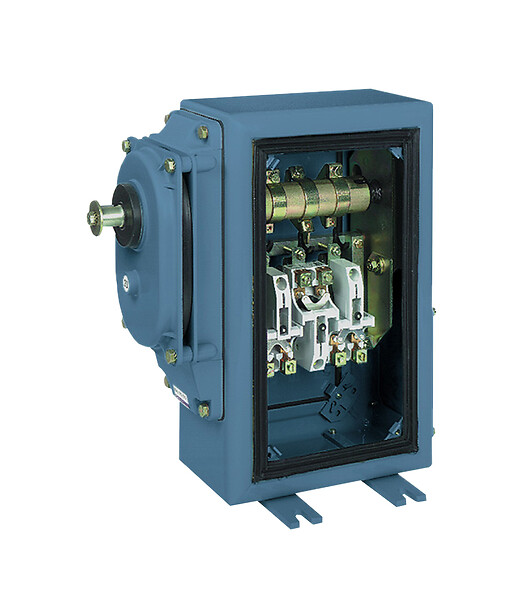

XR2BB03K10
Single-stage heavy duty screw limit switch XR2 - 3 NC - 200 rpm
End of commercialisation Fecha de fin de comercialización : Fecha de fin del servicio :
Expandir todo
Ficha de datos
Range of product
XR and XF
Product or component type
Single-stage heavy duty screw limit switch
Device short name
XR2
Product specific application
Liquid level control in pumping systems
position control of moving parts of hoisting or materials handling equipment
position control of moving parts of hoisting or materials handling equipment
Material
Sheet steel: enclosure
Type of operator
Drive shaft, end fittings with sprocket key and washer
Maximum number of turns
-
Contact operation
Snap action
Contacts type and composition
3 NC
Resistance across terminals
25 MEGOHM
Connections - terminals
Screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 2 x 2.5 mm² without cable end
Cable entry
Removable gland plate
Standards
EN/IEC 60947-5-1
Protective treatment
TC
Shock resistance
50 gn for 11 ms
Vibration resistance
> 5 gn (f= 10-55 Hz)
IP degree of protection
IP54 conforming to EN/IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
