XS7C40FP260ATT
Inductive sensor XS7 40x40x117 - plastic - Sn15mm - 24..240VAC - 7/8"
End of commercialisation Fecha de fin de comercialización : December 08th 2020 Fecha de fin del servicio : December 08th 2020
Expandir todo
Ficha de datos
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Device application
Not applicable
Sensor name
XS7
Sensor design
Form 40 x 40 x 117
Size
117 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Enclosure material
Plastic
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Male connector, 3 pins
[Us] rated supply voltage
24...240 V AC 50/60 Hz
Switching capacity in mA
5...500 mA
IP degree of protection
IP67 conforming to IEC 60529
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Output circuit type
AC
Detection face
5 positions turret head
Sensing range
8...15 mm
Front material
Plastic
Differential travel
3...20% of Sr
Repeat accuracy
<= 3% of Sr
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 25 Hz
Residual current
1.5 mA open state
Voltage drop
<5.5 V (closed)
Delay first up
120 MILLISECOND
Delay response
30 MILLISECOND
Marking
CE
Delay recovery
20 MILLISECOND
Product certifications
CCC
CSA
C-Tick
UL
CSA
C-Tick
UL
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
Expandir todo
Dibujos tecnicos

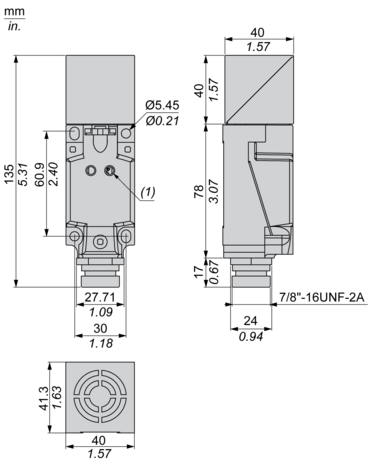

Dimensions
Setting-up
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Wiring Schemes
2-Wire AC Programmable, NO or NC Output Depending on Position of Link
