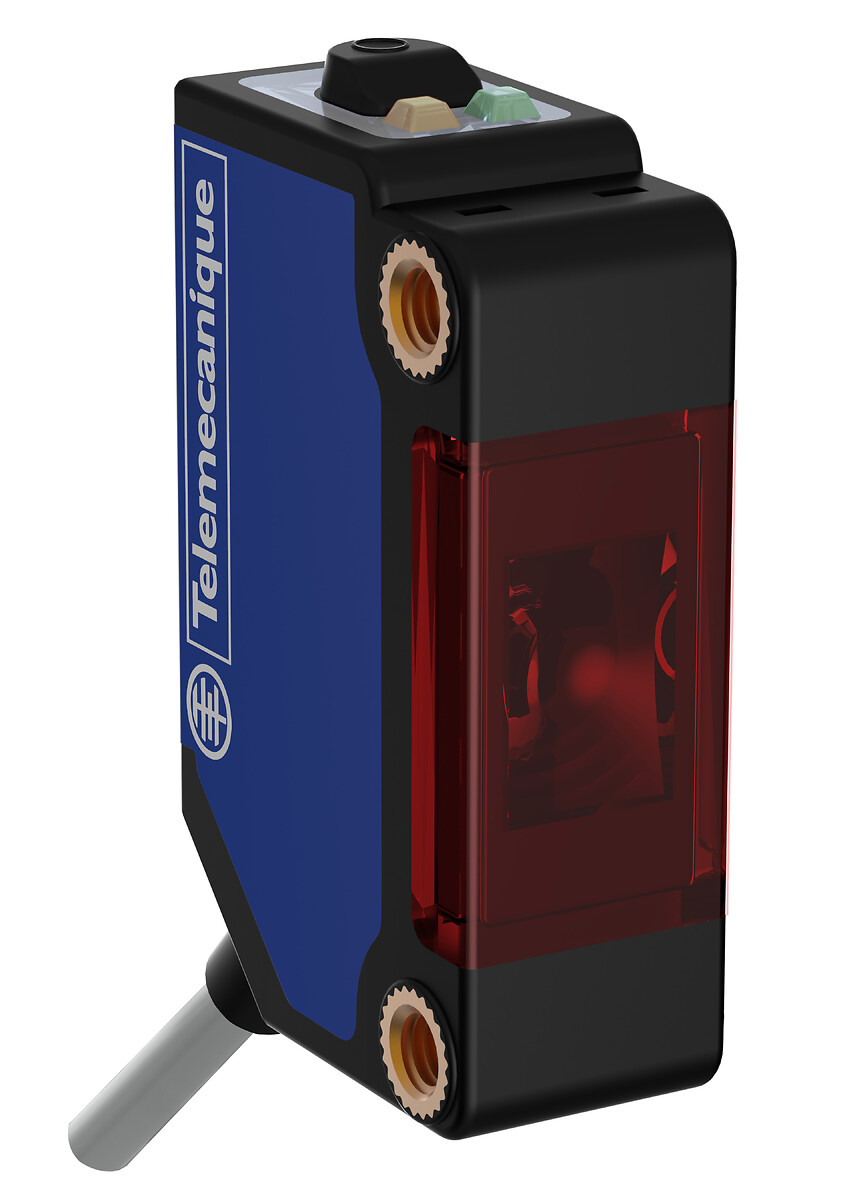

XUM2APBNL2R
Photo-electric sensor - XUM - receiver - Sn 8m - 12..24VDC - cable 2m
End of commercialisation Fecha de fin de comercialización : June 21st 2021 Fecha de fin del servicio : June 21st 2021
XUM2APBNL2R is replaced by the following product:
Quantity : 1
Expandir todo
Ficha de datos
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor receiver
Sensor name
XUM
Sensor design
Miniature
Detection system
Thru beam
Material
Plastic
Type of output signal
Discrete
Wiring technique
3-wire
Supply circuit type
DC
Discrete output type
PNP
Discrete output function
1 NC
Electrical connection
Cable
Product specific application
Not applicable
Emission
Infrared thru beam
Enclosure material
PBT
Lens material
PMMA
Output type
Solid state
Add on output
Without
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Status LED
1 LED (yellow) for output state, 1 LED (red) for instability
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
<= 400 Hz
Current consumption
50 mA no-load
Maximum voltage drop
<1.5 V (closed state)
Delay first up
30 MILLISECOND
Delay response
1 MILLISECOND
Setting-up
Without sensitivity adjustment
Delay recovery
1 MILLISECOND
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP65 double insulation, IP67 double insulation
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
