XUM5APSBL2

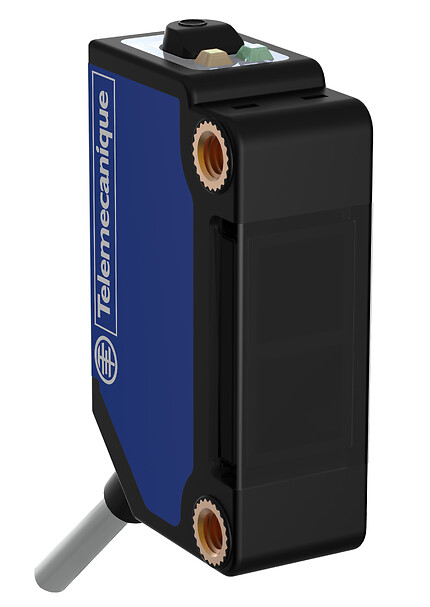

Photoelectric sensors XU, miniature, diffuse, Sn=700 mm, PNP, cable 2 m
End of commercialisation Fecha de fin de comercialización : January 16th 2023 Fecha de fin del servicio : January 16th 2023
XUM5APSBL2 is replaced by the following product:
Quantity : 1
Expandir todo
Ficha de datos
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUM
Sensor design
Miniature
Detection system
Diffuse
Sensing range
0...0.7 m
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Emission
-
Enclosure material
PBT
Lens material
PMMA
Status LED
-
Output type
Solid state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA with short-circuit protection
Switching frequency
500 Hz
Maximum voltage drop
<2 V
Current consumption
30 mA no-load
Delay first up
300 MILLISECOND
Delay response
1 MILLISECOND
Setting-up
Sensitivity by potentiometer
Supply voltage limits
10-30 V DC
Vibration resistance
+/-0.5 mm (f = 10-55 Hz)for every axis conforming to IEC 60068-2-6
Shock resistance
30 gn for for every axis conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP54 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2 CENTIMETER
Package 1 width
10.5 CENTIMETER
Package 1 length
10.5 CENTIMETER
Package 1 weight
54 GRAM
Unit type of package 2
S02
Number of units in package 2
60
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.608 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todo
Dibujos tecnicos
Dimensions
Pre-cable Version
Pre-cable Version
- (1) Output indicator (orange)
- (2) Stability indicator (green)
- (3) Setting pushbutton
- (4) Reception
- (5) Transmission
Connections and Schema
Connections and Schema
PNP
- BN : Brown
- BU : Blue
- BK : Black
Mounting and Clearance
Tightening Torque
- (1) Base mounting fixing bracket
Performance Curves
Diffuse System
- (y) Detection area in mm
- (x) Distance in m
