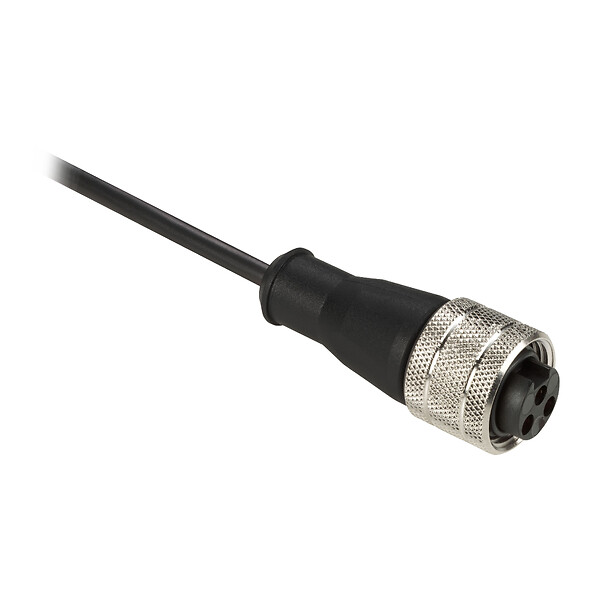

XZCP1865L5
Pre wired connectors XZ, straight female, 1/2"20 UNF, 3 pins, cable PUR 5 m
Commercialised
Expandir todo
Ficha de datos
Accessory / separate part type
Pre-wired connectors
Accessory / separate part category
Cabling accessory
Series name
General purpose
Electrical connection
Straight female connector 1/2"20 UNF, 3 pins
Cable composition
3 x 0.34 mm²
Collar material
Metal
Status LED
Without
IP degree of protection
IP67
Product certifications
cULus
[Ue] rated operational voltage
250 V AC, 300 V DC
Cable connector fixing
Screw-on
Wire insulation material
PUR
Insulating resistance
1 GIGAOHM
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
10.308 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
320
Package 3 height
75 CENTIMETER
Package 3 width
60 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
58.66 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todo
Dibujos tecnicos

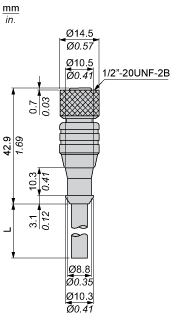

Dimensions
- L : Length of cable
Connections and Schemes
Connectors
- GN : Green
- RD/WH : Red / White
- RD/BK : Red / Black
Expandir todo
Documentos y Descargas
Nombre del documento
Fecha
Tamaño
1999-07-01
1422189
