9007ML04S0200

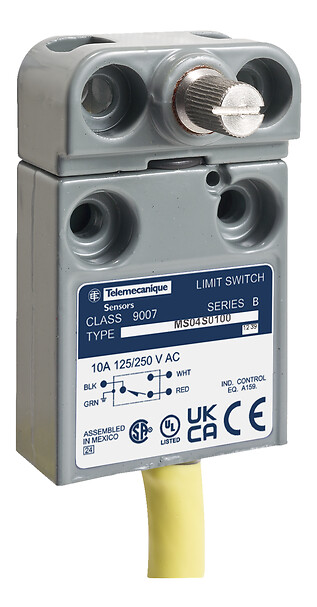

9007ML limit switch - rotary spring rtn. _ CW & CCW - 6' bottom cable
End of commercialisation End of commercialization date : End of service date :
9007ML04S0200 is replaced by the following product:
XCMD2115L1
Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1NC+1 NO, snap, 1 m
Quantity : 1
Expand all
Datasheet
Range of product
9007
Series name
Miniature potted
Product or component type
Limit switch
Device short name
9007MS/ML
Sensor design
Miniature
Body type
Fixed
Head type
Rotary head
Material
Metal
Body material
Cast zinc
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return without operating lever -
Type of approach
Lateral approach, 2 directions
Switch actuation
CW and CCW
from left and right
from left and right
Contacts type and composition
NC-NO
Switch function
SPDT-DB
Contact form
Form Z
Contacts material
Silver contacts
Contact operation
Snap action
Positive opening
Without
Electrical connection
Pre-wired cable bottom
Type of cable
SJTO cable (AWG 18), 6 ft, yellow
Terminals description ISO n°1
(black-orange)NO
(green-yellow)gnd
(red-white)NC
(green-yellow)gnd
(red-white)NC
Wire insulation material
PVC
Marking
CE
CSA
UL
CSA
UL
Shock resistance
35 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
10 gn (f= 75-1200 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Protective treatment
Epoxy powder coat
Product certifications
CE
CSA
UL
CSA
UL
Standards
E78403
LR 25490 Class 32 11 03
LR 25490 Class 32 11 03
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9.677 CENTIMETER
Package 1 width
3.81 CENTIMETER
Package 1 length
24.581 CENTIMETER
Package 1 weight
544.311 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
