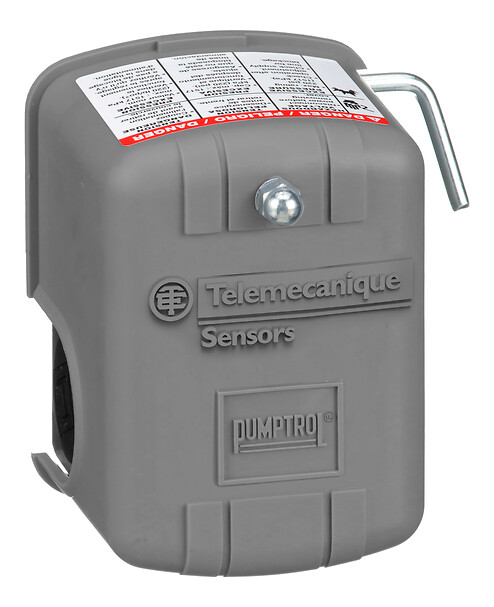

FSG2J24CP
PRESSURE SWITCH - 575 VAC 1 HP F + OPTIONS
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Pressure sensors XM
Pressure sensor name
FSG
Electrical circuit type
Power circuit
Product specific application
Not applicable
Pressure sensor type
Electromechanical pressure sensor
Controlled fluid
Fresh water (0-70 °C), sea water (0-70 °C)
Pressure actuator
Diaphragm
Pressure switch type of operation
Regulation between 2 thresholds
Scale type
Adjustable differential
Setting
Internal
Materials in contact with fluid
Nitrile
nylon 6/6
zinc plated steel
nylon 6/6
zinc plated steel
Local display
Without
Enclosure material
PS
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2 mm²
Fluid connection type
G 1/4 (female) conforming to ISO 228
Operating position
Any position
Terminal block type
4 terminals
Operating rate
10 CYCLE_PER_MINUTE
Terminals description ISO n°1
(1-2)NC
(3-4)NC
(3-4)NC
Standards
CE
IEC 60730
IEC 60730
Protective treatment
TC
IP degree of protection
IP20 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13.716 CENTIMETER
Package 1 width
11.684 CENTIMETER
Package 1 length
10.16 CENTIMETER
Package 1 weight
386 GRAM
Unit type of package 2
PAL
Number of units in package 2
250
Package 2 height
101.6 CENTIMETER
Package 2 width
101.6 CENTIMETER
Package 2 length
106.68 CENTIMETER
Package 2 weight
129.274 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
5
Package 3 height
22.86 CENTIMETER
Package 3 width
21.59 CENTIMETER
Package 3 length
37.084 CENTIMETER
Package 3 weight
2.218 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
