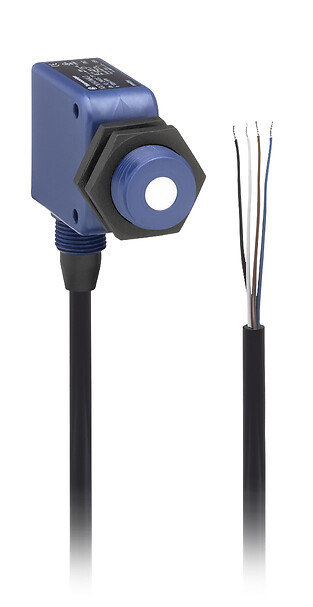

VM1VD3000
Hyde Park, Ultrasonic sensor, analog, voltage (V), 18 mm snout dual mount, 15 24 V DC
Commercialised
Expand all
Datasheet
Range of product
Hyde Park
Sensor type
Ultrasonic sensor
Series name
Virtu VM1
Sensor design
Flat form + cylindrical M18
Material
Plastic
Type of output signal
Analog
Type of sensing window
Adjustable
Wiring technique
4-wire
[Us] rated supply voltage
15...24 V DC with overload and short-circuit protection
ISO thread
M18 x 1
Electrical connection
Cable, 3 m cable length
Enclosure material
Valox
Front material
Glass epoxy
Minimum size of detected object
Cylinder diameter 2.5 mm - up to 200 mm sensing distance
Current consumption
40 mA
IP degree of protection
IP67
Marking
CE
Product certifications
UL
NEMA degree of protection
NEMA 4X (indoor use only)
Vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
14.288 CENTIMETER
Package 1 width
6.35 CENTIMETER
Package 1 length
14.288 CENTIMETER
Package 1 weight
13.608 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
