XCC3912PS84SGN

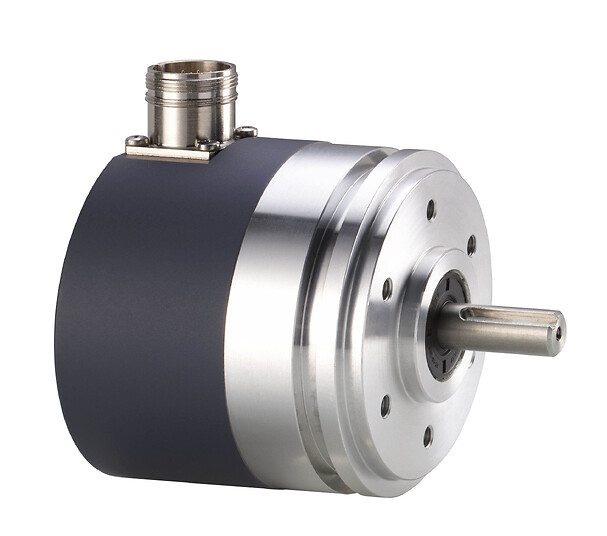

Opto-electronic rotary encoders XCC, absolute encoder Ø 90 multi turn, solid shaft 12 mm, SSI 25 bit Gray
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
OsiSense XCC
Device short name
XCC
Encoder type
Multiturn absolute encoder
Product specific application
Not applicable
Enclosure material
Zamak
Shaft type
Solid shaft
Resolution
4096 turns/8192 points
Output stage
Type SG
Type of output stage
SSI 25-bit gray
Electrical connection
1 male connector M23 radial 12 pins
IP degree of protection
IP66 conforming to IEC 60529
[Us] rated supply voltage
11...30 V DC
Current consumption
0...100 mA no-load
Protection type
Reverse polarity protection
short-circuit protection
short-circuit protection
Marking
CE
Shaft tolerance
G6
Residual ripple
500 mV
Vibration resistance
10 gn (f= 10-2000 Hz) conforming to IEC 60068-2-6
Maximum load
10 daN axial, 20 daN radial
Physical interface
RS422
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Output level
High level: 2 V minimum 20 mA
Base material
Aluminium
Shaft material
Stainless steel
Type of ball bearings
6000ZZ
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13.6 CENTIMETER
Package 1 width
19.2 CENTIMETER
Package 1 length
29.7 CENTIMETER
Package 1 weight
1.873 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

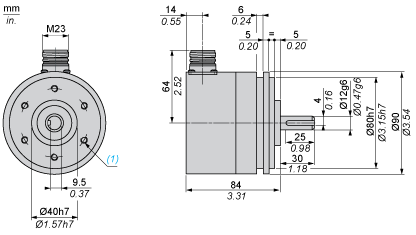

Dimensions
- (1) 6 holes M6 x 1 at 120° on 60 PCD, depth: 12 mm maximum
Wiring Diagram
M23, 12-pin Connector, Anticlockwise Connections
Technical Description
RS 422 Data Output
- (1) Idata = 20 mA |VOD| > 2 V
Technical Description
Isolated Clock Input
- (1) Idata = 20 mA |VOD| > 2 V
- VID maximum: 5 V
- Iclk maximum: 15 mA
Technical Description
DIRECTION Input
- (1) Idata = 20 mA |VOD| > 2 V
- VID maximum: 5 V
- Iclk maximum: 15 mA
- A : Anticlockwise
- B : Clockwise
- (1) DIRECTION input
- (2) DIRECTION of counting
- (3) V supply
Technical Description
Input Stage - Reset to Zero
- (1) Idata = 20 mA |VOD| > 2 V
- VID maximum: 5 V
- Iclk maximum: 15 mA
- A : Anticlockwise
- B : Clockwise
- (1) DIRECTION input
- (2) DIRECTION of counting
- (3) V supply
- (1) Reset input
- (2) Position
- (3) V supply
- (4) Position=0 (Reset to zero)
