XCCRE9SN
Plain bracket - for encoder Ø 90
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Accessory / separate part type
Fixing bracket
Accessory / separate part category
Mounting and fixing accessories
Accessory / separate part destination
Ø 90 mm encoder with solid shaft
Product compatibility
XCC1912P
XCC2912P
XCC3912P
XCC2912P
XCC3912P
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
8.5 CENTIMETER
Package 1 width
15 CENTIMETER
Package 1 length
20 CENTIMETER
Package 1 weight
292 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all

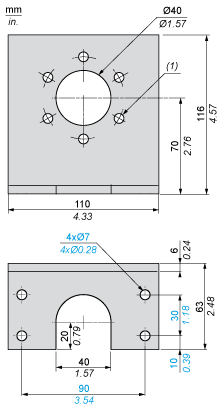

Technical Drawings
Dimensions
- (1) 6 holes Ø 7 for CHC M6 screws at 60° on 60 PCD
