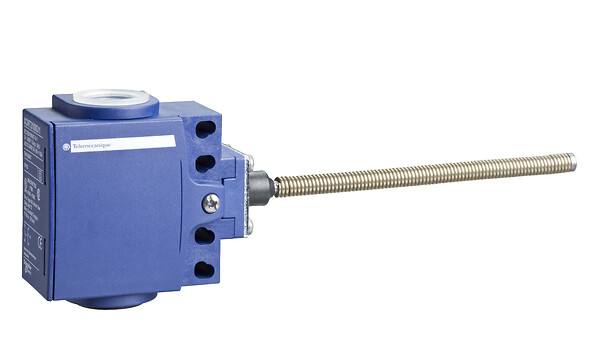

XCNT2108G11

Limit switch, Limit switches XC Standard, XCNT, spring rod lever nitrile boot, 1NC+1 NO, snap, Pg11

End of commercialisation End of commercialization date : October 30th 2020 End of service date : October 30th 2020

Expand all

Datasheet

Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCNT
Sensor design
Compact
Body type
Fixed
Head type
Multi-directional head
Material
Plastic
Body material
Plastic
Head material
Plastic
Fixing mode
By the body
Movement of operating head
Multi-directional
Type of operator
Spring return spring rod
Type of approach
Multi-directional approach
Cable entry
2 entries tapped for Pg 11 cable gland
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Switch actuation
By any moving part
Electrical connection
Screw-clamp open terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts insulation form
Zb
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Shock resistance
20 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
10 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Electrical shock protection class
Class II conforming to IEC 61140, class II conforming to NF C 20-030
IP degree of protection
IP65 conforming to IEC 60529
IK degree of protection
IK04 conforming to IEC 62262
Protective treatment
TC
Product certifications
CCC
CSA
UL
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

Dimensions

epds
  • (1) 2 tapped entry for Pg 11 cable gland
  • (2) Ø: 4 elongated holes Ø 4.3 x 6.3

Mounting with Cable Entry

Position of Cable Gland

epds
  • (1) Recommended
  • (2) To be avoided

Wiring Diagram

2-pole NC + NO Snap Action

epds

Characteristics of Actuation

Switch Actuation by Any Moving Part

epds

Functionnal Diagram

epds
  • (1) Closed
  • (2) Open
  • (3) Tripping
  • (4) Resetting
