XCSDMP5012

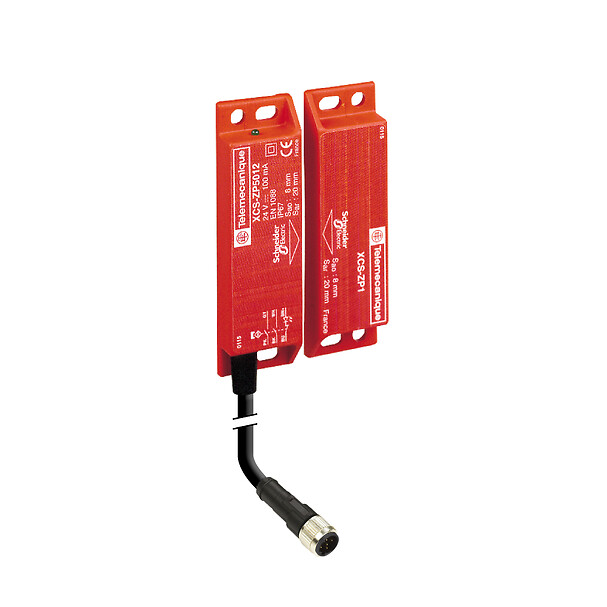

Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMP, 1 NC + 2 NO, 1 NO staggered, 2 m
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety switches XCS
Product or component type
Coded magnetic switch
Component name
XCSDMP
Design
Rectangular, standard
Size
88 x 25 x 13 mm
Contacts type and composition
1 NC + 2 NO
Contact operation
1 NO staggered
Material
Plastic
Electrical connection
Pre-cabled
Cable composition
6 x 0.25 mm²
Local signalling
1 LED
Approach directions
3 directions
[Ue] rated operational voltage
24 V DC
[Ie] rated operational current
100 MILLIAMPERE
Contacts material
Rhodium
Switching capacity in mA
5...100 mA
Insulation resistance
1000 MOhm
Switching frequency
150 Hz
Safety level
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
Safety reliability data
B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
Enclosure material
Thermoplastic PBT
Cable material
PVC
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
ISO 12100
ISO 14119
UL 508
IEC 60204-1
IEC 60947-5-1
ISO 12100
ISO 14119
UL 508
Product certifications
CSA
UL
UL
Protective treatment
TH
Vibration resistance
10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Sensitivity to magnetic fields
0.3 MILLITESLA
Electrical shock protection class
Class II conforming to IEC 61140
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.7 CENTIMETER
Package 1 width
14 CENTIMETER
Package 1 length
15.7 CENTIMETER
Package 1 weight
0.207 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.342 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
