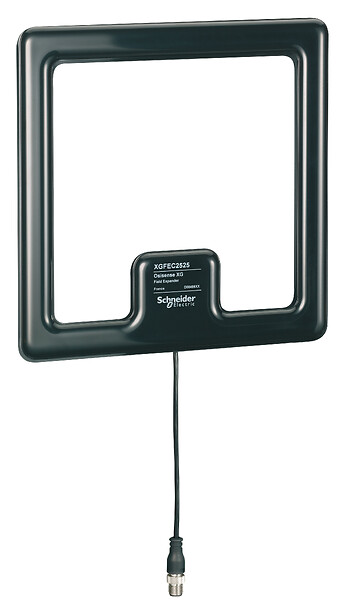

XGFEC2525
Radio frequency identification XG, field expander universal type, Sn 26...150 mm, 250 x 250 x 10 mm
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Radio frequency identification XG
Accessory / separate part type
Field expander
Product specific application
Universal
Product compatibility
XGCS4901201...XGHB221346
XGCS4901201...XGHB320246
XGCS4901201...XGHB320345
XGCS4901201...XGHB440245
XGCS4901201...XGHB520246
XGCS4901201...XGHB90E341
XGCS4901201...XGHB320246
XGCS4901201...XGHB320345
XGCS4901201...XGHB440245
XGCS4901201...XGHB520246
XGCS4901201...XGHB90E341
Accessory / separate part destination
Station with associated label
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S04
Number of units in package 2
6
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.552 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

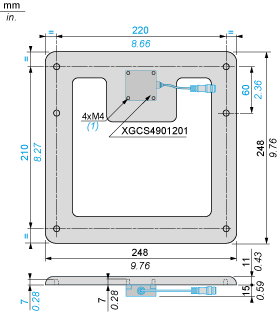

Dimensions
Field Expanders
- (1) 4 x M4 screws
Minimum Mounting Distances
Distance Between Field Expanders
Minimum Mounting Distances in a Metal Structure
Distance Between Field Expanders
Curves
Dialogue Zones for Field Expanders
- (1) Recommended working zone.
Curves
Dialogue Zones for Field Expanders
- (1) Recommended working zone.
