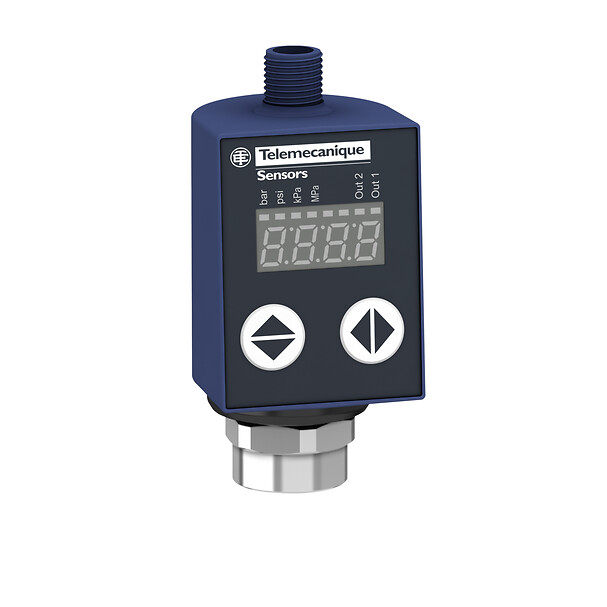

XMLR100M2P05
Electronic pressure sensors, Pressure sensors XM, XMLR 100 bar, G 1/4, 24 VDC, 2xPNP, M12
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Pressure sensors XM
Product or component type
Electronic pressure sensors
Pressure sensor type
Pressure transmitter
Pressure switch type of operation
Pressure switch with 2 switching outputs
Device short name
XMLR
Controlled fluid
Fresh water (0-80 °C), air (-20-80 °C), hydraulic oil (-20-80 °C), refrigeration fluid (-20-80 °C)
Fluid connection type
G 1/4 (female) conforming to DIN 3852-Y
[Us] rated supply voltage
24 V DC SELV (voltage limits: 17-33 V)
Current consumption
<= 50 mA
Electrical connection
Male connector M12, 4 pins
Type of output signal
Discrete
Discrete output type
Solid state PNP, 2 NO/NC programmable
Contacts type and composition
2 NO/NC programmable
Scale type
Fixed differential
Voltage drop
2 VOLT
Materials in contact with fluid
316L stainless steel
Front material
Polyester
Housing material
316L stainless steel
polyacrylamide
polyacrylamide
Operating position
Any position, but disposals can falsified the measurement in case of upside down mounting
Protection type
Overload protection
overvoltage protection
reverse polarity
short-circuit protection
overvoltage protection
reverse polarity
short-circuit protection
Response time on output
<= 5 ms for discrete output
Display type
4 digits 7 segments
Time delay range
0...50 s in steps of 1 second
Display response time type
Fast 50 ms, normal 200 ms, slow 600 ms
Local signalling
2 LEDs (yellow) for light ON when switch is actuated
Delay first up
300 MILLISECOND
Accuracy
<= 1 % of the measuring range
Measurement accuracy
<= 0.6 % of the measuring range
Repeat accuracy
<= 0.2 % of the measuring range
Drift of the sensitivity
+/- 0,03 % of measuring range/°C
Drift of the zero point
+/- 0,01 % of measuring range/°C
Display accuracy
<= 1 % of the measuring range
Electromagnetic compatibility
Susceptibility to electromagnetic fields: 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, immunity to conducted RF disturbances: 10 V 0.15...80 MHz conforming to IEC 61000-4-6, surge immunity test: 1 kV conforming to IEC 61000-4-5, electrical fast transient/burst immunity test: 2 kV conforming to IEC 61000-4-4, electrostatic discharge immunity test: 8 kV air, 4 kV contact conforming to IEC 61000-4-2
Marking
CE
Product certifications
cULus
Standards
IEC 61326-2-3
UL 61010-1
UL 61010-1
IP degree of protection
IP65 conforming to IEC 60529, IP67 conforming to IEC 60529
Vibration resistance
20 gn (f= 10-2000 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.98 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) Fluid entry: G 1/4 A female
Connections and Schema
Connector Wiring

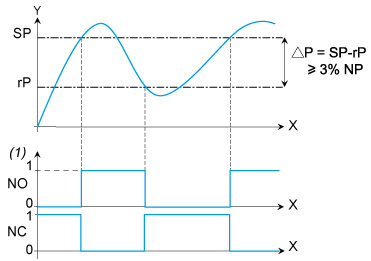

Switching Output Description. Hysteresis Mode
- X : Time
- Y : Pressure
- (1) Output
- NP : Nominal Pressure
- SP : Set point (adjustable from 8 % to 100 % NP)
- rP : Reset point (adjustable from 5 % to 97 % NP)

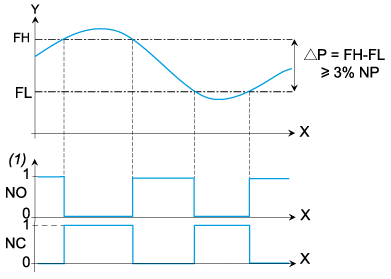

Switching Output Description. Window Mode
- X : Time
- Y : Pressure
- (1) Output
- NP : Nominal pressure
- FH : High switching point (adjustable from 8 % to 100 % NP)
- FL : Low switching point (adjustable from 5 % to 97 % NP)
Switching Output Description. Time Delay
- X : Time
- Y : Pressure
- (1) Output
- SP : Set point
- rP : Reset point
- dS : Time delay on the set point
- dr : Time delay on the reset point
