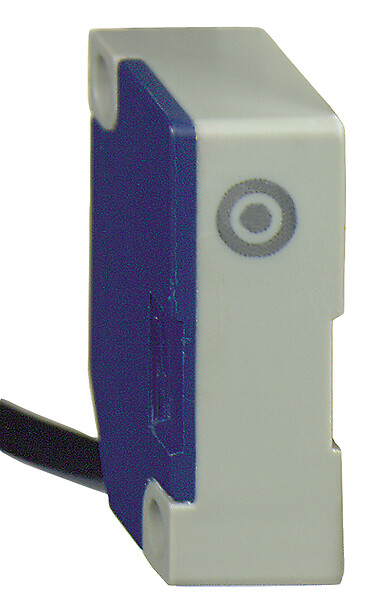

XS7H10PA340
Inductive proximity sensors XS, inductive sensor XS7, PBT, Sn5mm, 12...24 VDC
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS7
Size
8 mm
Body type
Fixed
Enclosure material
PBT
Type of output signal
Discrete
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Output circuit type
DC
Detection face
Frontal
Front material
PBT
Differential travel
1...15 % of Sr
Status LED
Output state: 1 LED (yellow)
Current consumption
<= 10 mA no-load
Marking
CE
Product certifications
CSA
C-Tick
UL
C-Tick
UL
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.1 CENTIMETER
Package 1 width
9.5 CENTIMETER
Package 1 weight
58 GRAM
Package 1 length
13 CENTIMETER
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
