XSAVEQ5062

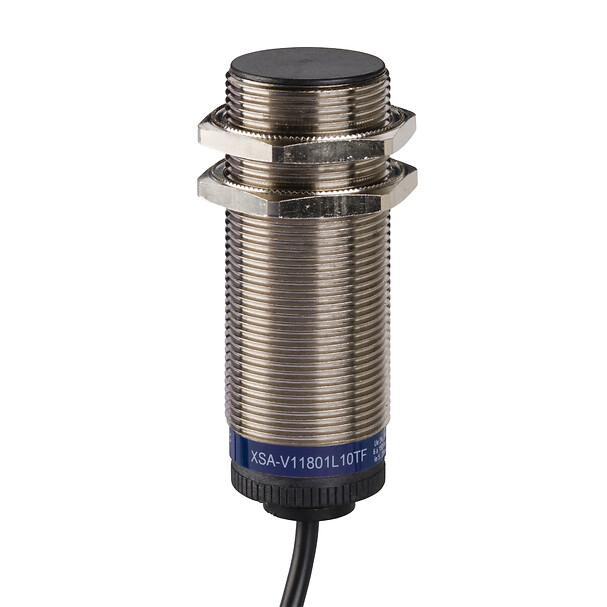

Inductive proximity sensors XS, zero speed sensor + options

End of commercialisation End of commercialization date : April 21st 2023 End of service date : April 21st 2023

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Product or component type
Sensor
Sensor type
Inductive proximity sensor
Sensor name
XSA
Device application
Rotation monitoring
Sensor design
Cylindrical M30
Size
81 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NC
Detector flush mounting acceptance
Flush mountable
Material
Metal
Electrical connection
Cable
Output circuit type
AC/DC
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M30 x 1.5
Front material
PPS
Sensing range
8...15 mm
Differential travel
3...15% of Fr
Repeat accuracy
<= 3% of Sr
Cable composition
2 x 0.34 mm²
Residual current
1.5 mA open state
Status LED
Output state: 1 LED (red)
Wire insulation material
PVC
Switching frequency
<= 800 Hz
Voltage drop
<5.7 V (closed)
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.604 CENTIMETER
Package 1 width
9.652 CENTIMETER
Package 1 length
13.208 CENTIMETER
Package 1 weight
226.796 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
