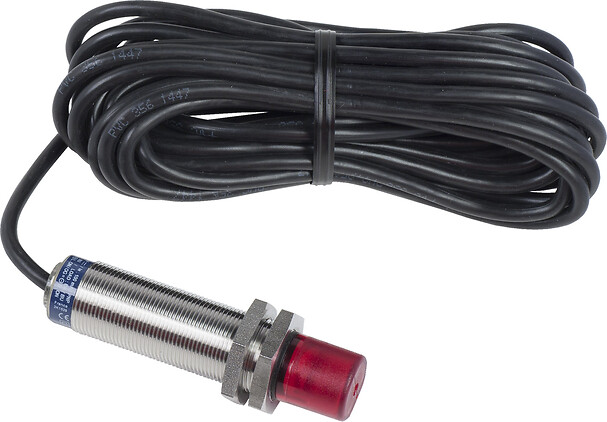

XU2N18PP9AAL5R
Photoelectric sensors XU, XU2, thru beam, 12...24 VDC, M18
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
general purpose single mode
Electronic sensor type
photo-electric sensor
Sensor name
XU2
Sensor design
cylindrical M18
Electrical connection
Cable
Emission
Infrared thru beam
Enclosure material
stainless steel : 304 CU
Lens material
PMMA
Output type
solid state
Add on output
Without
Status LED
1 LED (green) for supply on, 1 LED (yellow) for output state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Maximum voltage drop
<1.5 V (closed state)
Delay first up
15 MILLISECOND
Delay response
1 MILLISECOND
Delay recovery
1 MILLISECOND
Setting-up
without sensitivity adjustment
Kit composition
receiver
Vibration resistance
25 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
14.8 CENTIMETER
Package 1 width
8.1 CENTIMETER
Package 1 length
8.1 CENTIMETER
Package 1 weight
240 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
