9007B1

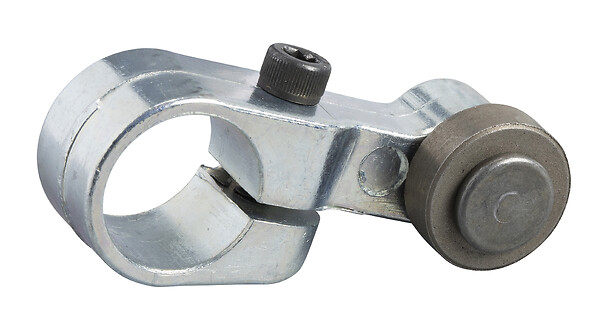

Limit switch lever, 9007, arm t+ft+options
Commercialised
Expand all
Datasheet
Range of product
9007
Series name
Severe duty
Product or component type
Limit switch lever
Device short name
9007T/FT
Movement of operating head
Rotary
Type of operator
Cast zinc spring return roller lever length: 1.5-1.5 in - offset: - convertible roller
Type of roller
1 steel outside roller (convertible) diameter: 0.75 in - width: 0.25 in
Type of approach
Lateral approach
Positive opening
Without
Switch actuation
By 30° cam
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
PAL
Number of units in package 2
4000
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.9 KILOGRAM
Unit type of package 3
S01
Number of units in package 3
50
Package 3 height
15 CENTIMETER
Package 3 width
15 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
3.97 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
