XCC1514TS00YS1

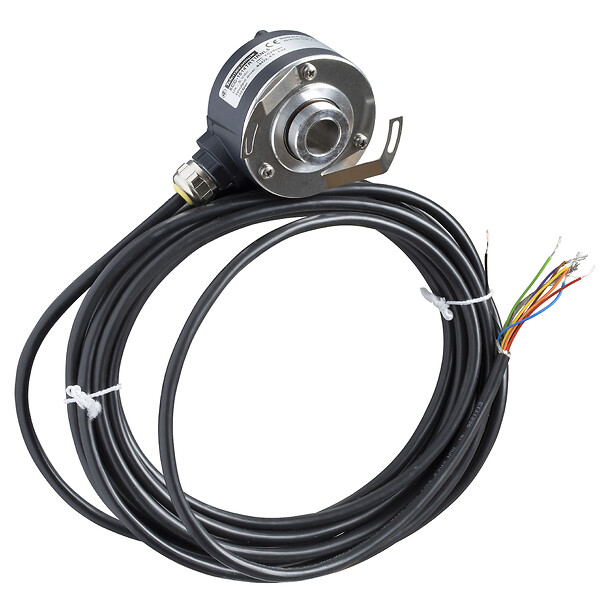

Opto-electronic rotary encoders XCC, incremental encoder Ø 58, through shaft 14 mm, 5/30 VDC
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
OsiSense XCC
Encoder type
Incremental encoder
Product specific application
Not applicable
Encoder name
XCC
Enclosure material
Zamak
[Us] rated supply voltage
5...30 V DC
Shaft type
Through shaft
Resolution
100 points
Output stage
Type Y
Type of output stage
Driver push-pull
Electrical connection
1 male connector M23 radial 12 pins
IP degree of protection
IP65 conforming to IEC 60529
Current consumption
0...75 mA no-load
Protection type
Reverse polarity protection
short-circuit protection
short-circuit protection
Marking
CE
Shaft tolerance
H7
Residual ripple
500 mV
Vibration resistance
10 gn (f= 55-2000 Hz) conforming to IEC 60068-2-6
Maximum load
2 daN axial, 5 daN radial
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Output level
Low level: 0.5 V maximum 20 mA, high level: V supply - 2.5 V minimum 20 mA
Base material
Aluminium
Shaft material
Stainless steel
Type of ball bearings
6803ZZ
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9 CENTIMETER
Package 1 width
14.2 CENTIMETER
Package 1 length
27.1 CENTIMETER
Package 1 weight
434 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
