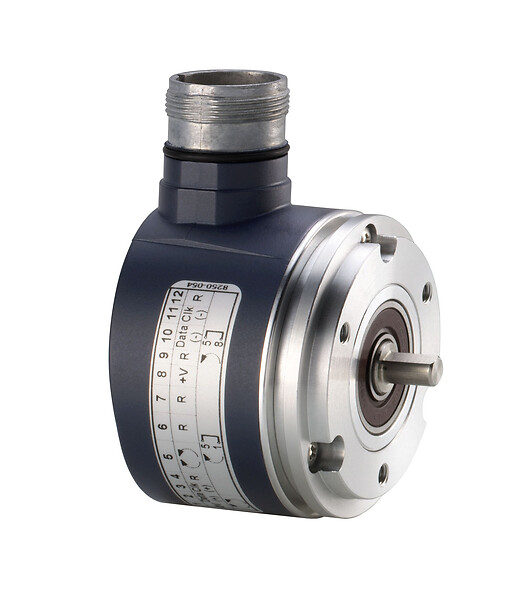

XCC2506PS81KB
Opto-electronic rotary encoders XCC, absolute encoder Ø 58 single turn, solid shaft 6 mm, push pull 13 bit binary
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
OsiSense XCC
Device short name
XCC
Encoder type
Single turn absolute encoder
Product specific application
Not applicable
Enclosure material
Zamak
Shaft type
Solid shaft
Resolution
8192 points
Output stage
Type KB
Type of output stage
Driver push-pull binary
Electrical connection
1 male connector M23 radial 16 pins
IP degree of protection
IP65 conforming to IEC 60529
[Us] rated supply voltage
11...30 V DC
Current consumption
0...100 mA no-load
Protection type
Reverse polarity protection
short-circuit protection
short-circuit protection
Marking
CE
Shaft tolerance
G7
Residual ripple
500 mV
Vibration resistance
10 gn (f= 10-2000 Hz) conforming to IEC 60068-2-6
Maximum load
10 daN radial, 5 daN axial
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Output level
Low level: 0.5 V maximum 20 mA, high level: V supply - 2.5 V minimum 20 mA
Base material
Aluminium
Shaft material
Stainless steel
Type of ball bearings
6000ZZ1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
8.5 CENTIMETER
Package 1 width
14 CENTIMETER
Package 1 length
27 CENTIMETER
Package 1 weight
495 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

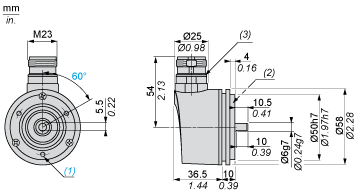

Dimensions
- (1) 3 M4 holes at 120° on 42 PCD, depth: 10 mm
- (2) Collar XCCRB1 mounted
- (3) Nitrile seal
Wiring Diagram
M23, 16-pin Connector, Anticlockwise Connections
Technical Description
Type KB and KG (N) Output Stage
- (1) Output
Technical Description
KB and KG (N) DIRECTION Input
- (1) Output
- A : Anticlockwise
- B : Clockwise
- (1) DIRECTION input
- (2) DIRECTION of counting
- (3) V supply
Expand all
Documents & Downloads
Document name
Date
Size
7/18/2024
333
7/18/2024
333
7/18/2024
333
7/18/2024
333
7/18/2024
333
7/18/2024
333
7/18/2024
333
7/18/2024
333
7/18/2024
333
7/18/2024
333
7/18/2024
333
7/18/2024
333
7/18/2024
333
7/18/2024
333
7/18/2024
333
7/18/2024
333
11/21/2007
123748
11/21/2007
227690
11/21/2007
292166
11/21/2007
2948
11/21/2007
30128
11/21/2007
332442
11/21/2007
40424
11/21/2007
44112
11/21/2007
46665
11/21/2007
4763
11/21/2007
5303
11/21/2007
60128
11/21/2007
60702
11/21/2007
62871
11/21/2007
76615
Document name
Date
Size
2013-08-01
2395344
Expand all
Related products & accessories

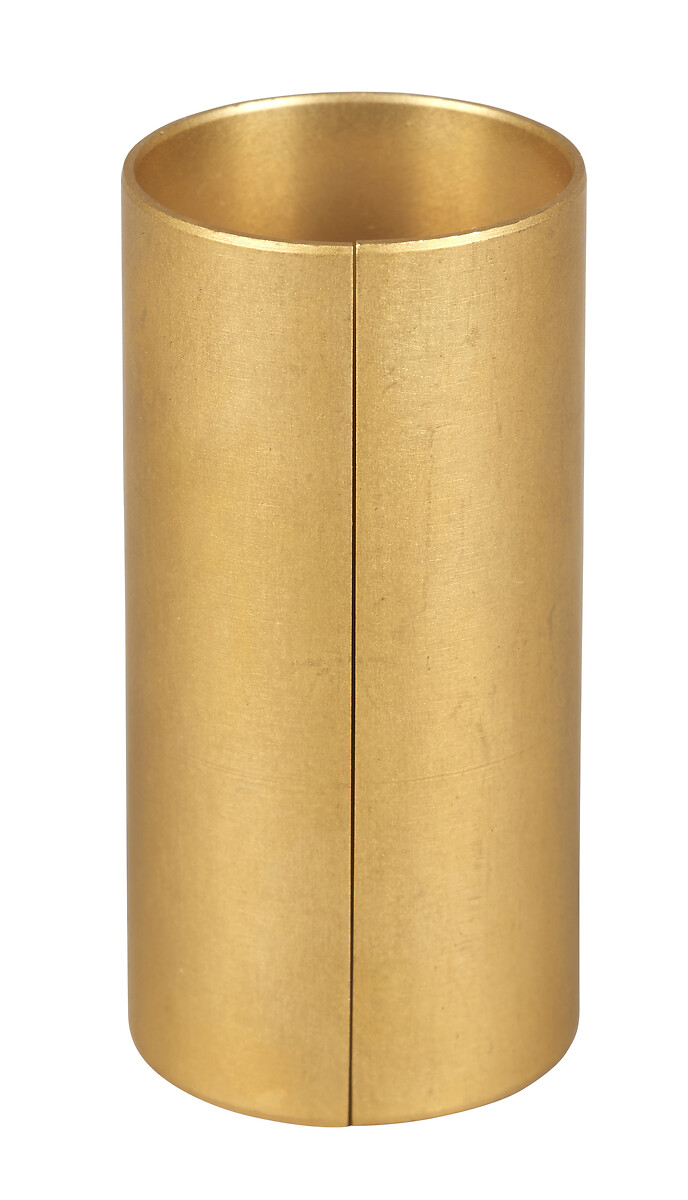

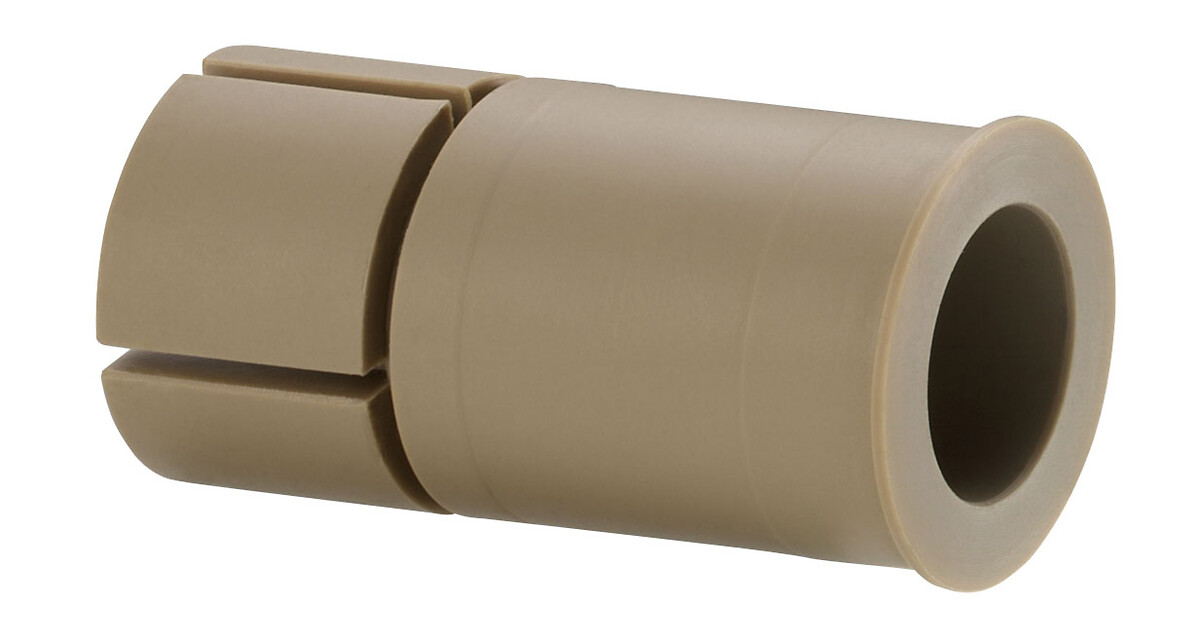

XCCR358RDL06
reduction collar - for encoder Ø 58 with hollow shaft - Ø 15 to 6 mm
XCCR358RDL08
reduction collar - for encoder Ø 58 with hollow shaft - Ø 15 to 8 mm
XCCR358RDL10
reduction collar - for encoder Ø 58 with hollow shaft - Ø 15 to 10 mm
XCCR358RDL12
reduction collar - for encoder Ø 58 with hollow shaft - Ø 15 to 12 mm
XCCR358RDLU37
reduction collar - for encoder Ø 58 with hollow shaf - Ø 15 mm to 0.375 inch
XCCR358RDLU50
reduction collar - for encoder Ø 58 with hollow shaf - Ø 15 mm to 0.5 inch
XCCRAR0606
Shaft coupling, for encoder, with spring Ø 6 to 6 mm
XCCRAR0608
shaft coupling - for encoder - with spring Ø 6 to 8 mm
XCCRAR0610
Shaft coupling, for encoder, with spring Ø 6 to 10 mm
XCCRAR0612
shaft coupling - for encoder - with spring Ø 6 to 12 mm
XCCRAR0614
shaft coupling - for encoder - with spring Ø 6 to 14 mm

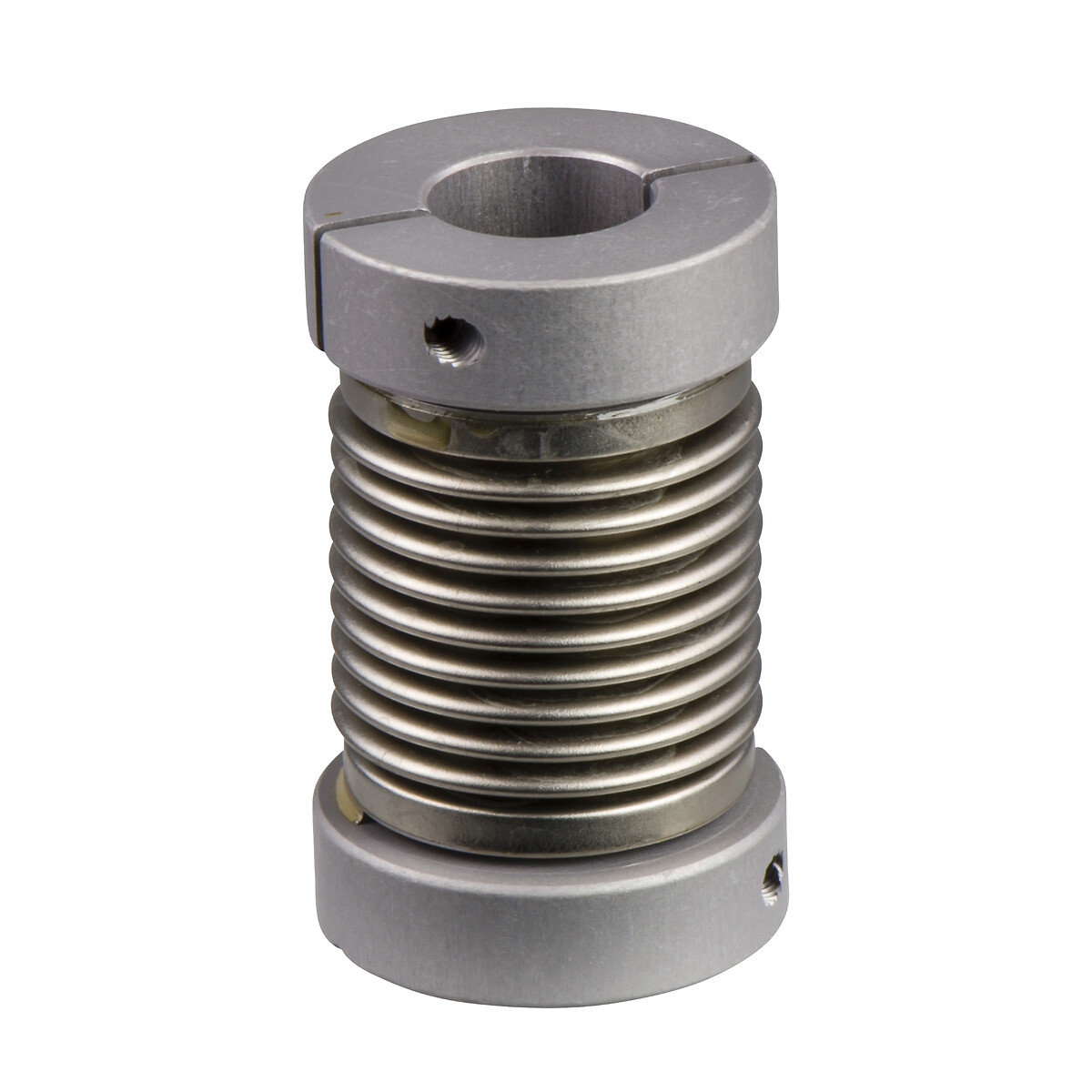

XCCRAS1008
shaft coupling - for encoder - homokinetic with bellows Ø 10 to 8 mm
XCCRAS1010
Shaft coupling, for encoder, homokinetic with bellows Ø 10 to 10 mm
XCCRAS1012
Shaft coupling, for encoder, homokinetic with bellows Ø 10 to 12 mm
XCCRAS10U25
shaft coupling - for encoder - homokinetic with bellows Ø 10 mm to 0.25 inch
XCCRAS10U37
shaft coupling - for encoder - homokinetic with bellows Ø 10 mm to 0.375 inch

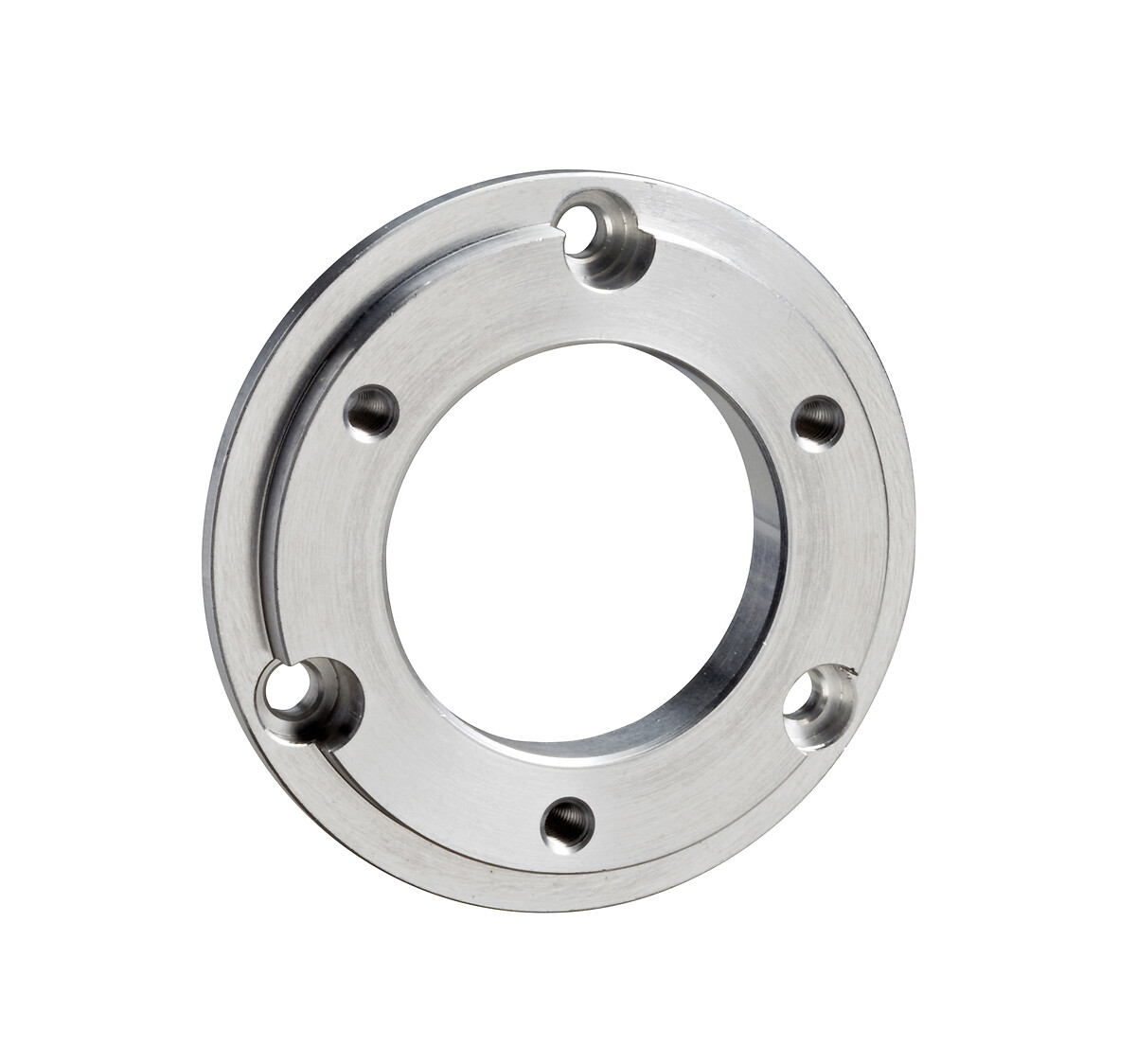

XCCRB1
collar for synchro mounting - for encoder Ø 58
XCCRB6
fixing collar - for encoder Ø 58

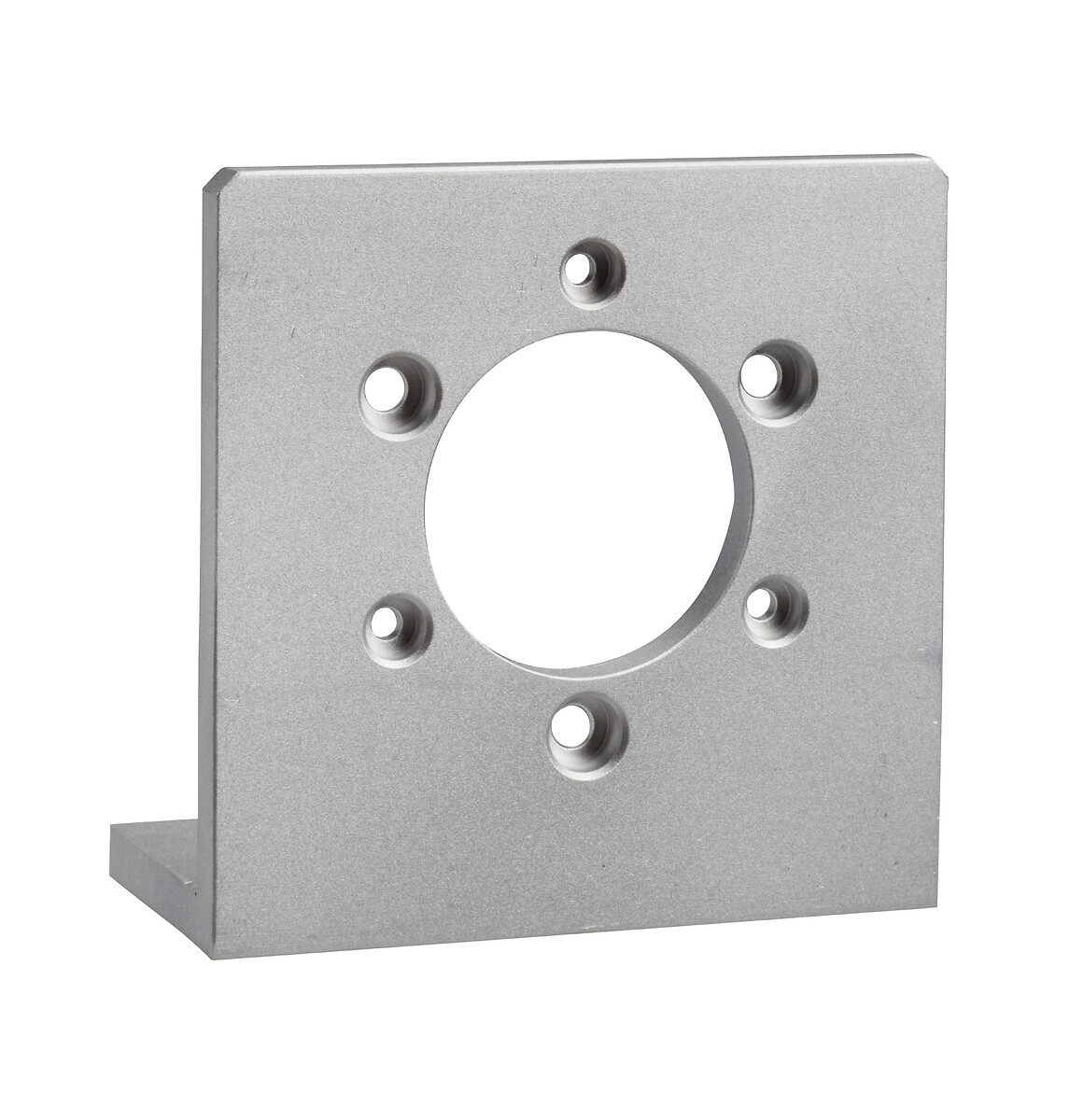

XCCRE5SN
Plain bracket, for encoder Ø 58
XCCRF5N
flexible mounting kit - anti-rotation - for encoder Ø 58
XCCRG5
set of 3 eccentric clamps - for encoder Ø 58

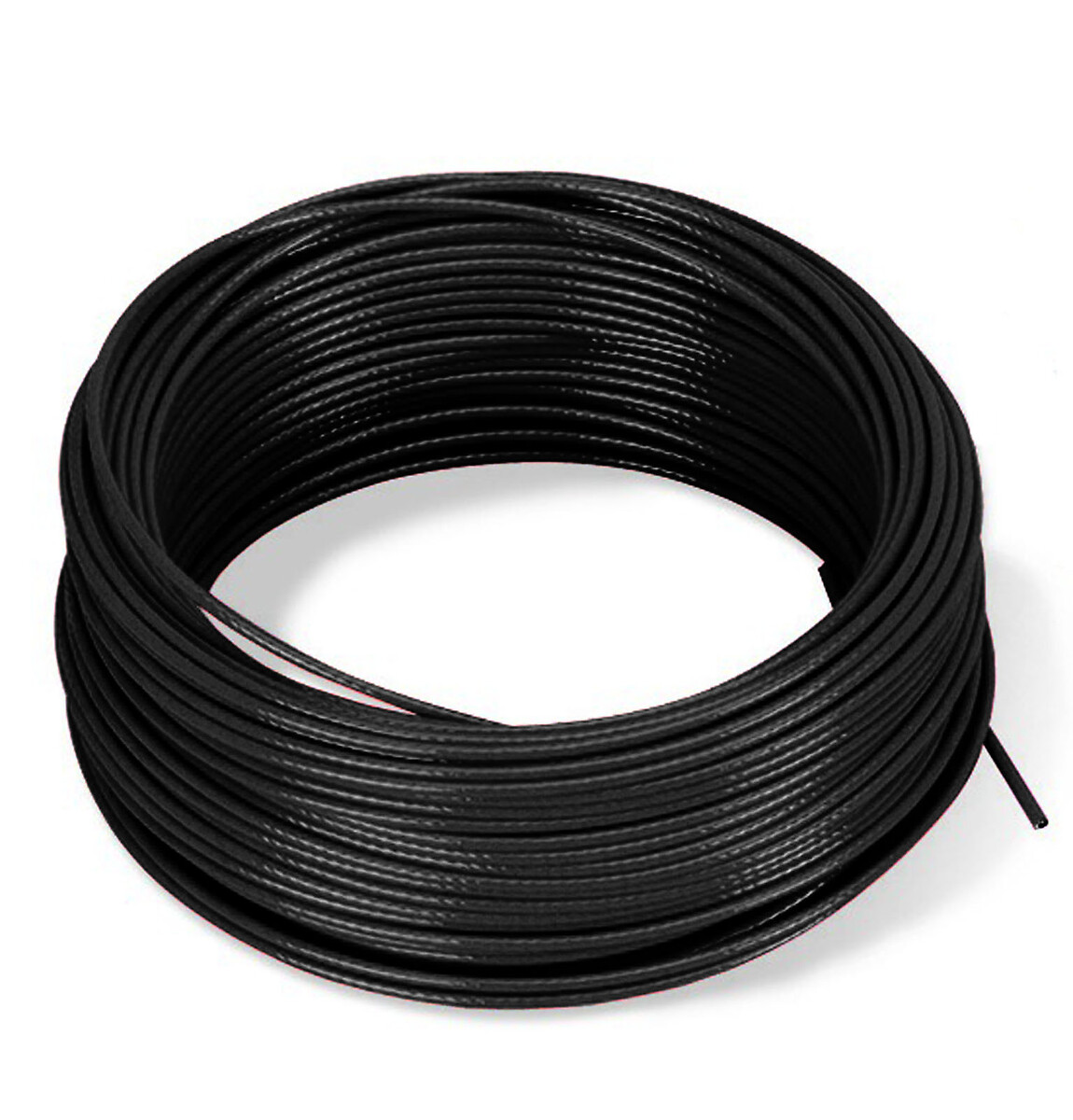

XCCRX16
Shielded cable, for absolute single turn // encoder

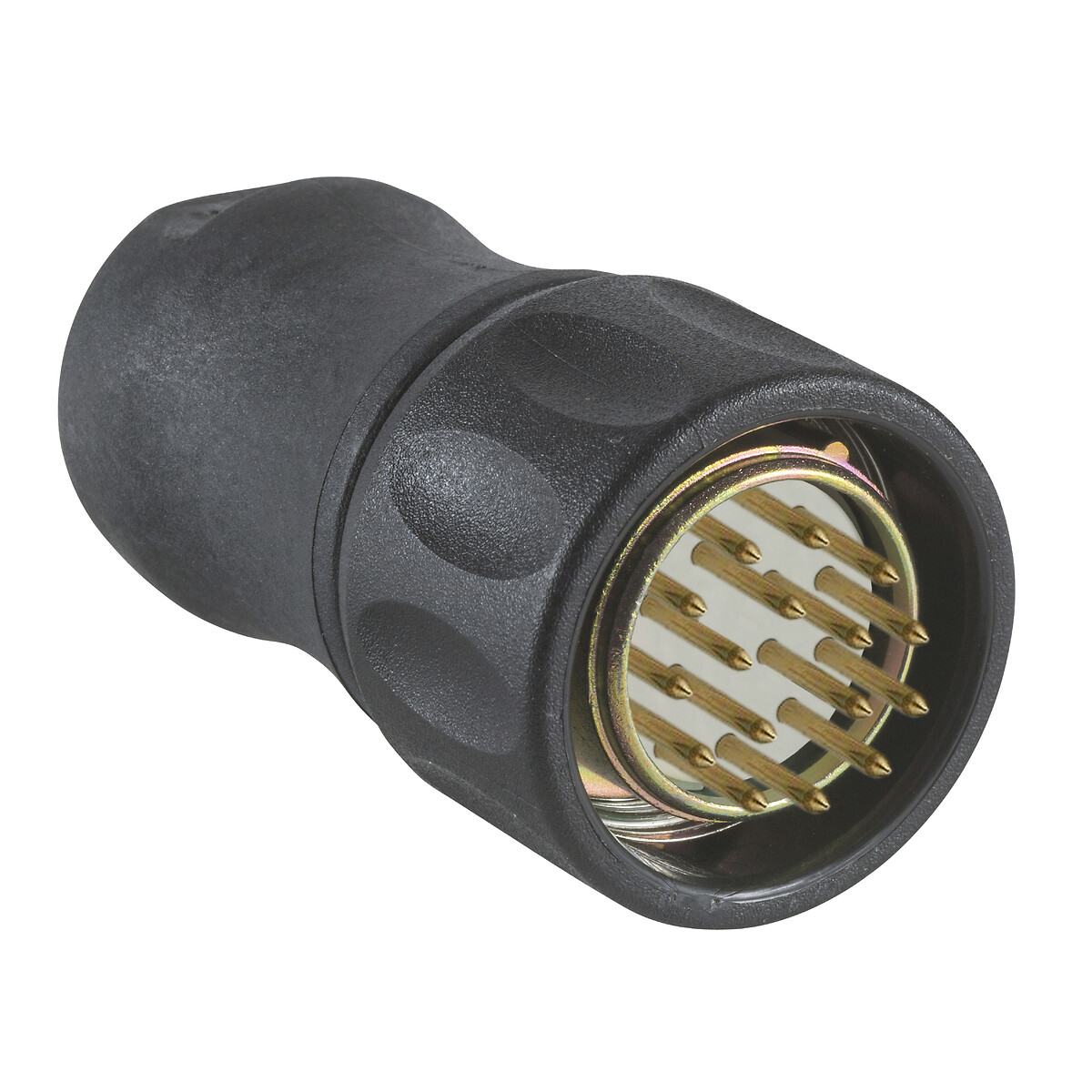

XZCC23FDP160S
