XCC2930TS81KBN

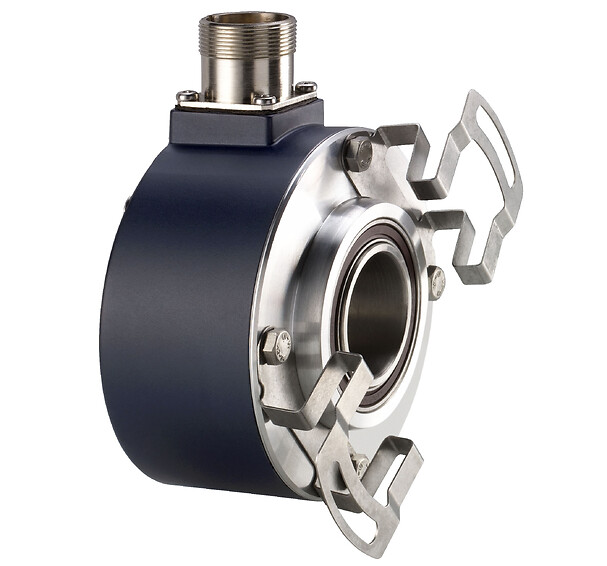

Opto-electronic rotary encoders XCC, absolute encoder Ø 90 single turn, through shaft 30 mm, push pull 13 bit binary
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
OsiSense XCC
Device short name
XCC
Encoder type
Single turn absolute encoder
Product specific application
Not applicable
Enclosure material
Zamak
Shaft type
Through shaft
Resolution
8192 points
Output stage
Type KB
Type of output stage
Driver push-pull binary
Electrical connection
1 male connector M23 radial 16 pins
IP degree of protection
IP65 conforming to IEC 60529
[Us] rated supply voltage
11...30 V DC
Current consumption
0...100 mA no-load
Protection type
Reverse polarity protection
short-circuit protection
short-circuit protection
Marking
CE
Shaft tolerance
H7
Residual ripple
500 mV
Vibration resistance
10 gn (f= 10-2000 Hz) conforming to IEC 60068-2-6
Maximum load
5 daN axial, 8 daN radial
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Output level
Low level: 0.5 V maximum 20 mA, high level: V supply - 3 V minimum 20 mA
Base material
Aluminium
Shaft material
Stainless steel
Type of ball bearings
6807
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Expand all

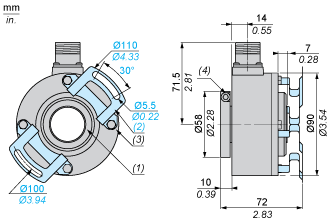

Technical Drawings
Dimensions
- (1) Through shaft, Ø 30 (H7)
- (2) Anti-rotation device, 1 x XCCRF9N, mounted
- (3) 4 M5 x 6 on 78 PCD
- (4) 1 CHC M5 x 12 stainless steel A2 locking screw
Wiring Diagram
M23, 16-pin Connector, Anticlockwise Connections
Technical Description
Type KB and KG (N) Output Stage
- (1) Output
Technical Description
KB and KG (N) DIRECTION Input
- (1) Output
- A : Anticlockwise
- B : Clockwise
- (1) DIRECTION input
- (2) DIRECTION of counting
- (3) V supply
