Home Products XGW4F111

XGW4F111

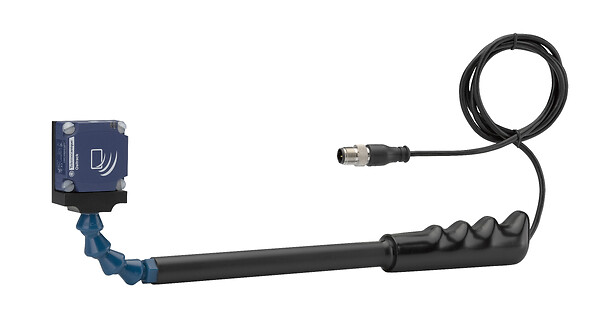

Compact smart antenna, Radio frequency identification XG, RFID Wand reader, 13.56 MHz

End of commercialisation End of commercialization date : End of service date :

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Radio frequency identification XG
Product or component type
Compact smart antenna
RFID compact station name
XGCS
Design
290 x 40 x 25
Electrical connection
5 pin(s)male remote connector M12, shielded cable cable 1 m
Outer dimension
290 x 40 x 25 mm
Product compatibility
RFID microchip Fujitsu (MB89R118 - MB89R119)
RFID microchip INSIDE (micropass)
RFID microchip Microelectronic (EM4135)
RFID microchip STM (CRIX4K)
RFID microchip NXP (SL2, SL1, Ultralight, Std 1K/4K, Desfire)
RFID microchip Texas (Tag-it HFI)
[Us] rated supply voltage
24 V DC conforming to Protective Extra Low Voltage
Transmission rate
9600 bauds...115200 bauds (automatic detection)
Communication port protocol
Modbus RTU
Communication port support
RS485
Associated tag type
Automatic detection of the type of tags
ISO 14443 standard tags
ISO 15693 standard tags
Current consumption
< 60 mA
Status LED
Communication network: 1 LED (dual colour), RFID communication: 1 LED (dual colour)
Marking
CE
Product certifications
UL, FCC
Standards
ETSI EN 300 330-1
ETSI EN 300 330-2
ETSI EN 301 489-1
ETSI EN 301 489-3
IP degree of protection
IP65 conforming to IEC 60529
Vibration resistance
2 mm (f= 5-29.5 Hz) conforming to IEC 60068-2-6, 7 gn (f= 29.5-150 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
IK degree of protection
IK02 conforming to IEC 62262
Electromagnetic compatibility
Electrostatic discharge immunity test: (contact discharge), 3, 6 kV, conforming to IEC 61000-4-2, electrostatic discharge immunity test: (air discharge), 3, 8 kV, conforming to IEC 61000-4-2, electrical fast transient/burst immunity test: (signal ports), 3, 1 kV, conforming to IEC 61000-4-4, electrical fast transient/burst immunity test: (power ports), 3, 2 kV, conforming to IEC 61000-4-4, susceptibility to electromagnetic fields: , 3, 10 V/m, conforming to IEC 61000-4-3, 1.2/50 µs shock waves immunity test: , 3, 10 kV, conforming to IEC 61000-4-5, conducted RF disturbances: , 3, 10 V, conforming to IEC 61000-4-6, magnetic field at power frequency: , 4, 30 A/m, conforming to IEC 61000-4-8
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9 CENTIMETER
Package 1 width
9 CENTIMETER
Package 1 length
55 CENTIMETER
Package 1 weight
484 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
