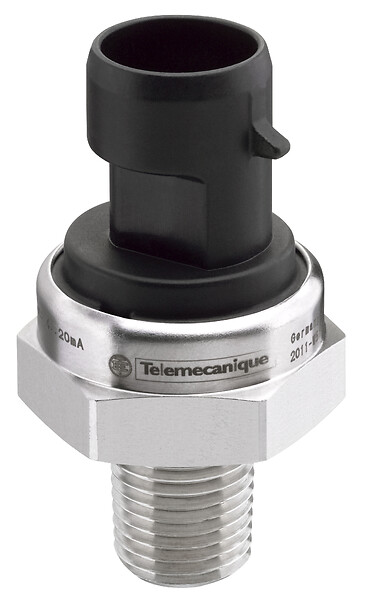

XMLP600PP13

Telemecanique Pressure sensors XM

Electronic pressure sensors

Pressure transmitter

XMLP

1/4" - 18 NPT (male)

Control circuit

1 male connector Packard Metripack 150 3 pins

Analogue

5 V DC SELV (voltage limits: 4.5-5.5 V)

0.5...4.5 V, 3-wire

Set of 1

Individual

Stainless steel type 17-4PH
stainless steel type AISI 304

Fixed differential

Fresh water (0-120 °C), air (-30-120 °C), hydraulic oil (-30-120 °C), gas (-30-120 °C), refrigeration fluid (-30-120 °C)

Without

< 5 mA

Susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...1000 MHz, electrical fast transient/burst immunity test conforming to IEC 61000-4-4 2 kV, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 500 V 12 Ohm, 1 kV 42 Ohm, radiated RF fields conforming to IEC 61000-4-6 10 V 0.15...80 MHz, electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact

Load short-circuit
reverse polarity

< 5 ms 92 % of full scale

Infinity

+/- 0,02 % of measuring range/°K

+/- 0,02 % of measuring range/°K

+/- 0,2 % de la plage de mesure

+/- 0,5 % de la plage de mesure

Any position

CE
EN/IEC 61326-1

cULus
RCM

TC

20 gn (f = 10-2000 Hz) conforming to EN/IEC 60068-2-64

25 gn for 11 ms conforming to IEC 60068-2-27

IP65 conforming to IEC 60529, IP67 conforming to IEC 60529

PCE

1
