XS1N18PA349
Inductive proximity sensors XS, inductive sensor XS1 M18, L39mm, brass, Sn10mm, 12...24 VDC, cable 2 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Device application
Not applicable
Sensor name
XS1
Sensor design
Cylindrical M18
Size
39 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Enclosure material
Nickel plated brass
Discrete output function
1 NO
Discrete output type
PNP
Electrical connection
Cable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA DC with overload and short-circuit protection
IP degree of protection
IP68 double insulation conforming to IEC 60529, IP69K conforming to DIN 40050
Detector flush mounting acceptance
Flush mountable
Material
Metal
Output circuit type
DC
Detection face
Frontal
Thread type
M18 x 1
Sensing range
8...15 mm
Front material
PPS
Differential travel
1...15 % of Sr
Wire insulation material
PvR
Cable composition
3 x 0.34 mm²
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 1000 Hz
Voltage drop
<2 V (closed)
Current consumption
0...10 mA no-load
Delay first up
5 MILLISECOND
Delay response
0.3 MILLISECOND
Marking
CE
Delay recovery
0.7 MILLISECOND
Product certifications
CSA
UL
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2 CENTIMETER
Package 1 width
13 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
98 GRAM
Unit type of package 2
S03
Number of units in package 2
44
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.703 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

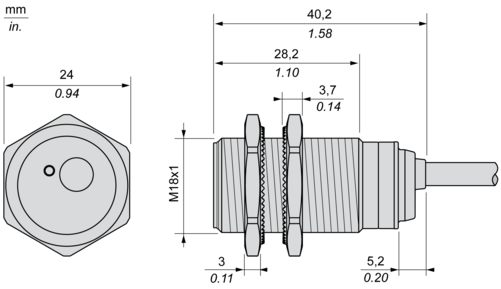

Dimensions
