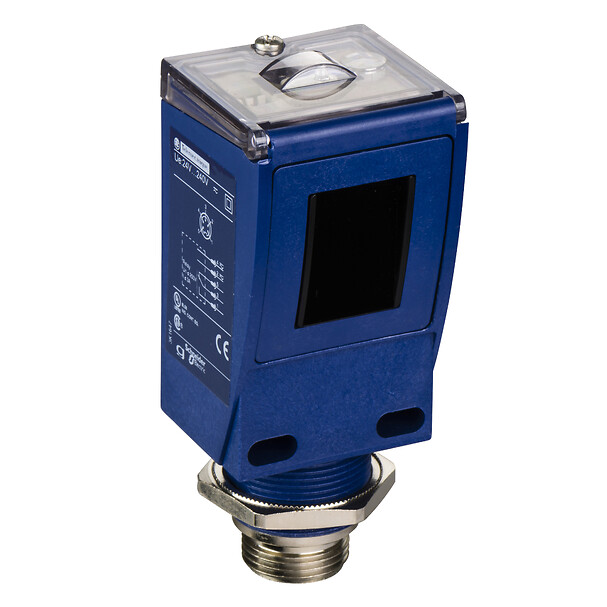

XUC8ARCTU78
Photoelectric sensors XU, XUC, BGS, Sn 1.2 m, 24...240VAC/DC, 7/8"
End of commercialisation End of commercialization date : December 31st 2020 End of service date : December 31st 2020
XUC8ARCTU78 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUC
Sensor design
Compact
Detection system
Diffuse with background suppression
Material
Plastic
Type of output signal
Discrete
Wiring technique
5-wire
Supply circuit type
AC/DC
Discrete output function
1 C/O
Electrical connection
1 male connector, 5 pins
Product specific application
Not applicable
Emission
Infrared diffuse with background suppression
Enclosure material
PC
Lens material
PMMA
Output type
Solid state
Add on output
With alarm output
Cable composition
5 x 0.34 mm²
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Status LED
1 LED (yellow) for output state, 1 LED (red) for stability
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Current consumption
35 mA no-load
Output voltage
<= 250 V AC
Time delay range
0...15 s monostable, on-delay or off-delay (programmable) delay
Maximum voltage drop
<1.5 V (closed state)
Delay first up
15 MILLISECOND
Maximum power consumption in W
-
Delay response
1 MILLISECOND
Setting-up
Sensitivity adjustment with potentiometer
Delay recovery
1 MILLISECOND
Kit composition
Reflector XUZC50
sensor
sensor
Vibration resistance
7 gn (f = 10-55 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP67 conforming to IEC 60529
Shock resistance
20 gn (duration = 11 ms) conforming to IEC 60068-2-27
NEMA degree of protection
NEMA 12 conforming to IEC 60529, NEMA 13 conforming to IEC 60529, NEMA 3 conforming to IEC 60529, NEMA 4 conforming to IEC 60529, NEMA 4X conforming to IEC 60529, NEMA 6 conforming to IEC 60529, NEMA 6P conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
