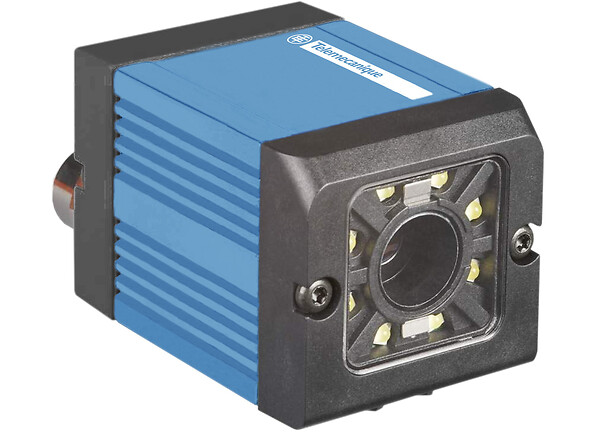

XUWSA12R
Photoelectric sensors XU, Vision sensor object standard focal lengh 12 mm red leds
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
OsiSense XU
Sensor name
XUW
Series name
Vision
Enclosure material
ABS
aluminium
aluminium
Electronic sensor type
Vision sensor
Sensor design
Compact
Communication port protocol
EtherNet/IP
Detection system
Diffuse
Provided equipment
1 CD (logiciel et documentation)
mounting clamp XUZASW001
mounting clamp XUZASW001
[Us] rated supply voltage
24 V DC with reverse polarity protection, 24 V DC with short-circuit protection
IP degree of protection
IP65 conforming to IEC 60529, IP67 conforming to IEC 60529
Acquisition speed
25 frames/s
Product certifications
CE
cULus
cULus
Setting-up
Focus adjustment by potentiometer
Current consumption
<= 200 mA no-load
Field of view
8 x 6...250 x 170 mm
Pixel resolution
736 x 480
Technology type
CMOS
Light source
Red LED (4 groups of 2 leds)
Tool type
Pattern matching 40 ms), contour 60 ms), contrast 4 ms), brightness 4 ms), greyscale 4 ms)
Lens material
PMMA
Output function governance
Fonctions logiques
prêt
temporisation
valide
prêt
temporisation
valide
Input function
Déclenchement externe
sélection du programme
sélection du programme
Discrete output function
1 NO or 1 NC programmable
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Delay first up
13 SECOND
Electrical connection
1 male connector, connector type: M12, 12 pins, circuit application: power supply and digital input/output (metal), 1 female connector, connector type: M12, 4 pins, circuit application: Ethernet network (metal)
Switching capacity in Ma
50 mA by output (resistive or PLC input load), 100 mA ejector output (inductive load)
Vibration resistance
7 gn amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.7 CENTIMETER
Package 1 width
16.5 CENTIMETER
Package 1 length
23 CENTIMETER
Package 1 weight
347.9 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
