XZCPV0941L5

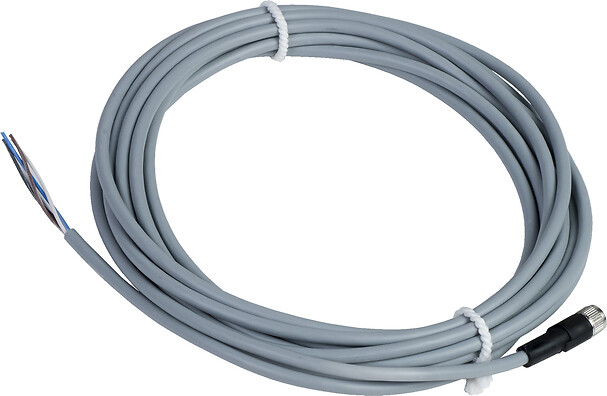

Pre wired connectors XZ, straight female, M8, 4 pins, cable PVC 5 m
Commercialised
Expand all
Datasheet
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Pre-wired connectors
Electrical connection
Straight female connector M8, 4 pins
Collar material
Metal
Cable composition
4 x 0.25 mm²
Wire insulation material
PVC
[Ue] rated operational voltage
60 V AC, 75 V DC
Insulating resistance
1 GIGAOHM
IP degree of protection
IP65
IP67
IP67
Product certifications
cULus
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
10.308 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- L : Length of cable
Connections and Schemes
Connector
- BN : Brown
- BK : Black
- BU : Blue
- WH : White
Expand all
Documents & Downloads
Document name
Date
Size
2024-06-28
4263041
Document name
Date
Size
2024-02-07
4923197
Document name
Date
Size
Document name
Date
Size
7/18/2024
115139
7/18/2024
14263
7/18/2024
18952
7/18/2024
19484
7/18/2024
21114
7/18/2024
21370
7/18/2024
21720
7/18/2024
22291
7/18/2024
22524
7/18/2024
22831
7/18/2024
23462
7/18/2024
26659
7/18/2024
28201
7/18/2024
28760
7/18/2024
29720
Document name
Date
Size
2025-05-16
544270
2025-02-28
439601
Expand all
Related products & accessories
XZCPV0566L2
Pre wired connectors XZ, straight female, M8, 3 pins, cable PVC 2 m
