XZCRV1511040A2

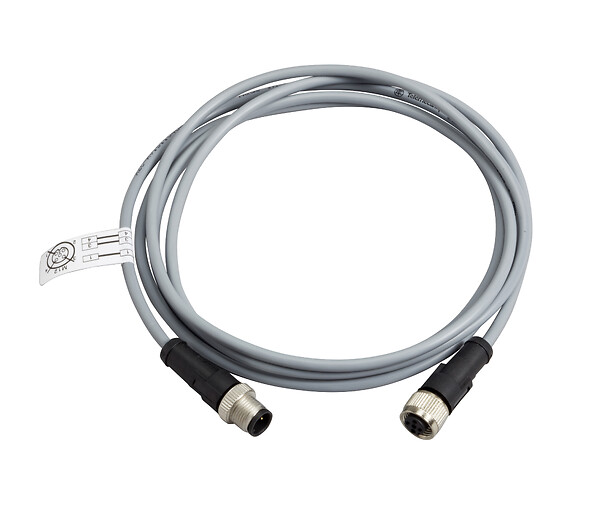

Jumper cable XZ, male straight M12 3 pin, female straight M12 3 pin, PVC 2 m
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Jumper cable
Jumper cable end 1
M12 male 3 pins straight connector with screw-on
Jumper cable end 2
M12 female 3 pins straight connector with screw-on
Collar material
Metal
Cable composition
3 x 0.25 mm²
Wire insulation material
PVC
[Ue] rated operational voltage
250 V AC, 300 V DC
Insulation resistance
1000 MOhm
Resistance across terminals
5000 MILLIOHM
IP degree of protection
IP65
IP67
IP67
Product certifications
cULus
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.5 CENTIMETER
Package 1 width
18 CENTIMETER
Package 1 length
24 CENTIMETER
Package 1 weight
82 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all

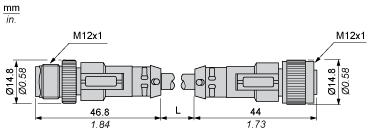

Technical Drawings
Dimensions
- L : Length of cable
