ZCKE05C

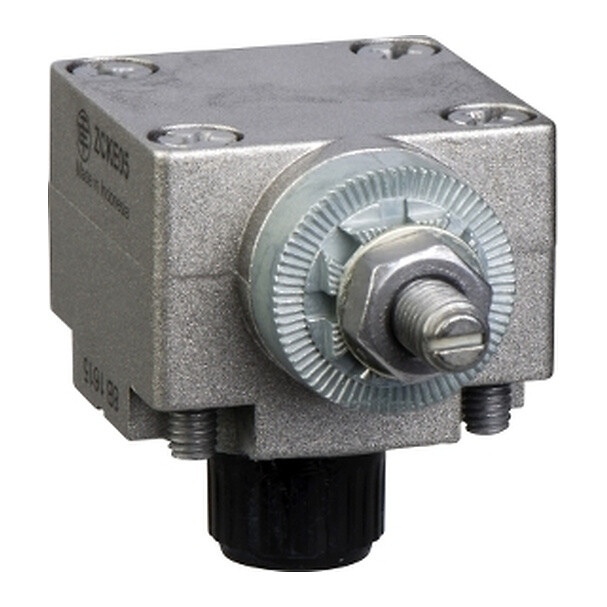

Limit switch head, Limit switches XC Standard, for ZCK E, without operating lever
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch head
Device short name
ZCKE
Head type
Rotary head
Product compatibility
XCKJ
Movement of operating head
Rotary
Type of operator
Without operating lever spring return
Type of approach
Lateral approach, 1 or 2 programmable direction
Switch actuation
CW and/or CCW
from left and/or right
from left and/or right
Positive opening
With
Head material
Metal
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Documents & Downloads
Document name
Date
Size
2025-05-16
279207
2025-02-28
271377
