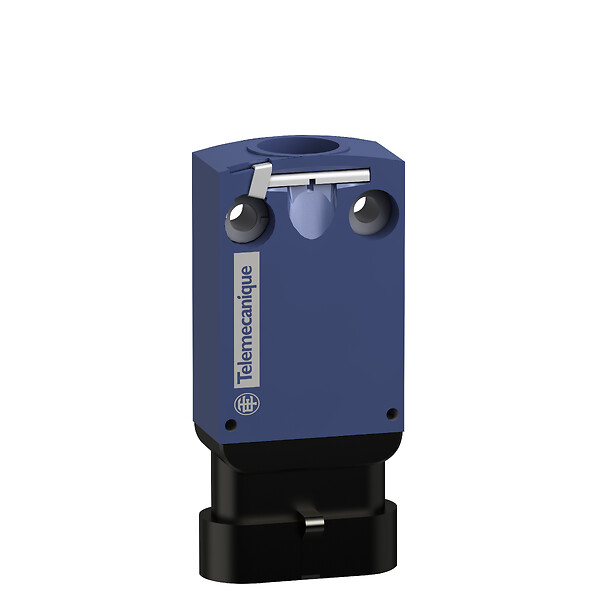

ZCMD21AM4
Limit switch body, Limit switches XC Standard, ZCMD, 1NC+1 NO, silver, snap action, connection AMP 4P
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch body
Device short name
ZCMD
Design
Miniature
Body type
Fixed
Body material
Zamak
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Product compatibility
XCMD
Electrical connection
Male connector AMP connector, 4 pins
Contacts insulation form
Zb
Contacts material
Silver plated contacts
Positive opening
Without
Resistance across terminals
0.025 Ohm conforming to IEC 60255-7 category 3
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
50
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.6 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
